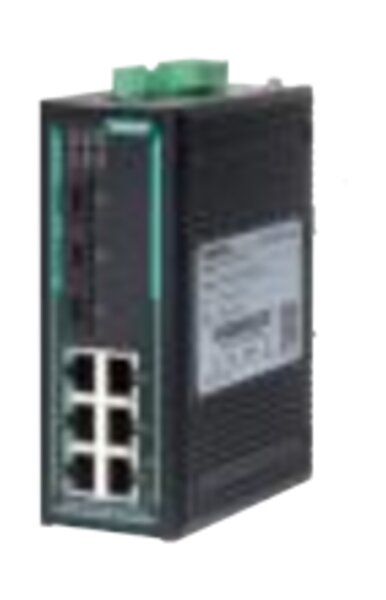

MIEN / MISCOM Layer 2 Managed DIN-Rail Industrial Ethernet Switch

by Maisvch · Wuhan, Hubei · MIEN5000 / MISCOM6000 / MISCOM7000 series

Layer 2 managed DIN-rail industrial switches from 5 to 20 ports, with Fast Ethernet, Gigabit and 10G SFP+ options, ring redundancy and a wide -40 to +85 °C range on many models.

Key specs

Power supply

DC9~60V / AC/DC220V

14 models in this family

MIEN5205C-F/2F-2D232/485MIEN5205C-F/2F-2CANMIEN5206C-2F-2D485MIEN5208MIEN5208-2FMIEN5208-4FMIEN5206G-2GF-4GTMIEN5210G-2GF-8GTMIEN5212G-4GF-8GTMISCOM6208MISCOM6216MISCOM7208BP-2GTSMISCOM7212G-4GF-8GTMISCOM7214GX-2XGF-4GF-8GT

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Maisvch, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Models (examples)	MIEN5205C-F/2F, MIEN5206C-2F-2D485, MIEN5208(-2F/-4F), MIEN5206G-2GF-4GT, MIEN5210G-2GF-8GT, MIEN5212G-4GF-8GT, MISCOM6208(-2F/-4F), MISCOM6216, MISCOM6218-2F, MISCOM6220-4F, MISCOM7208BP-2GTS, MISCOM7209-3GF, MISCOM7210-2GF, MISCOM7210GBP, MISCOM7212G-4GF-8GT, MISCOM7220G-4GF-16GT, MISCOM7214GX-2XGF-4GF-8GT
Port count	5 to 20
Power input	DC9~60V, DC12~60V, AC/DC220V (by model)
Operating temperature	-40 to +85 °C (AC models +75 °C)
Mounting	35 mm DIN-rail
Size	118 x 53 x 88 to 160 x 74 x 122 mm
Switching bandwidth	1.2 Gbps to 64 Gbps
Redundancy	MW-Ring, ERPS, RSTP/STP
Layer 2 features	VLAN, static port aggregation, LACP, IGMP snooping, storm control, port isolation, QoS, 802.1X, HTTPS/SSL, ACL, SNMPv1/v2c/v3, RMON, LLDP

As printed in the Maisvch catalog, page 6. Confirm final specs in your quote.

What it does well

Ring redundancy (MW-Ring, ERPS, RSTP)
Models with isolated RS232/485 or CAN ports
Optical bypass on some models

Applications

Machine and line networkingRing networks

Industries

Factory automationTransportationPower and utilitiesSmart city
