1200 Robotics Seated-Robot Inserter
by Share Well · Suzhou, Jiangsu · Robotics series
Odd-form insertion machine built around an integrated seated (SCARA-type) robot, a cost-effective choice for large or irregular components.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Share Well, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Insertion speed | 1,800 cph |
|---|---|
| Insertion cycle time | 2 s/part |
| Placement accuracy | +/-0.03 mm |
| Working heads | 4 or 6 |
| PCB size | 300 x 350 mm |
| Component size (max) | 35 / 50 mm (customized) |
| Component height (max) | 40 / 50 mm (customized) |
| Component weight | Max 500 g |
| Insertion angle | Plane |
| Operating voltage | 220VAC +/-11% |
| Operating pressure | 0.5 +/-0.06 MPa, 50 L/min |
| Machine dimensions | 1211 x 1111 x 1800 mm |
| Machine weight | 950 kg |
| Pick method | Gripping/Pickup |
| Insertion direction | 0-360 deg |
| Repeat positioning accuracy | +/-0.02 mm |
| PCB thickness | 0.8-5 mm |
| PCB weight | Max 6 kg |
| Clamping edge width | 3 mm / 5 mm |
| Conveyor | Three-stage, belt/chain, max 800 mm/s, automatic width adjustment |
| Component clearance height | Up 45 mm / Down 20 mm |
| Feeders | Vertical tape 20, horizontal tape 16, tube 16, tray 4, vibratory bowl 16 |
| Power | 1.8 kVA |
| Machine port | SMEMA (European-style 14-pin) |
| Safety | Door switch, light curtain, electronic pressure switch |
As printed in the Share Well catalog, page 8. Confirm final specs in your quote.
What it does well
- Integrated seated robot
- Gull-wing door and integrated work heads
- Machine vision
Applications
Industries
More from Share Well
680 Superfast High-Speed Odd-Form Inserter
Insertion machine · Share Well
5,300 cph (0.68 s/part)
1600 Robotics Hoisting-Robot Inserter
Insertion machine · Share Well
2,000 cph (1.8 s/part)
1800 Robotics Six-Axis Inserter
Insertion machine · Share Well
6-axis · 1,600 cph (2.2 s/part)

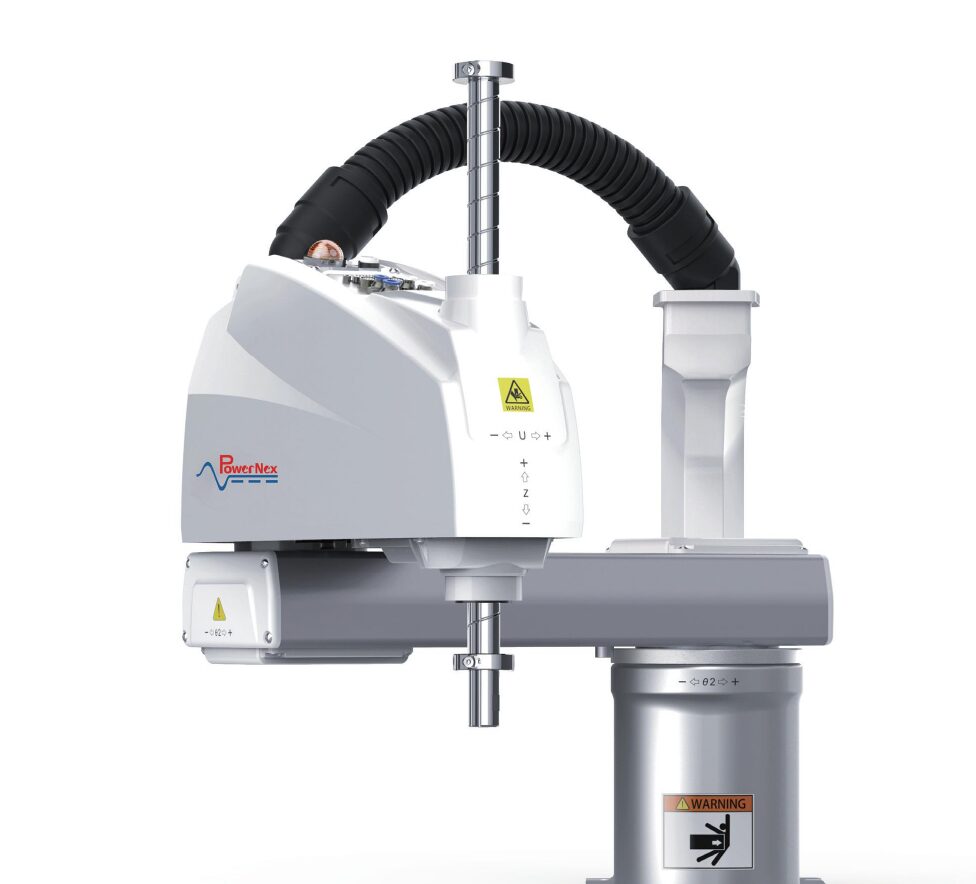

P Series Desktop SCARA Robots
4 sizesSCARA / delta · Share Well
20 kg44 lb payload · 800 mm31.5 in reach · 4-axis

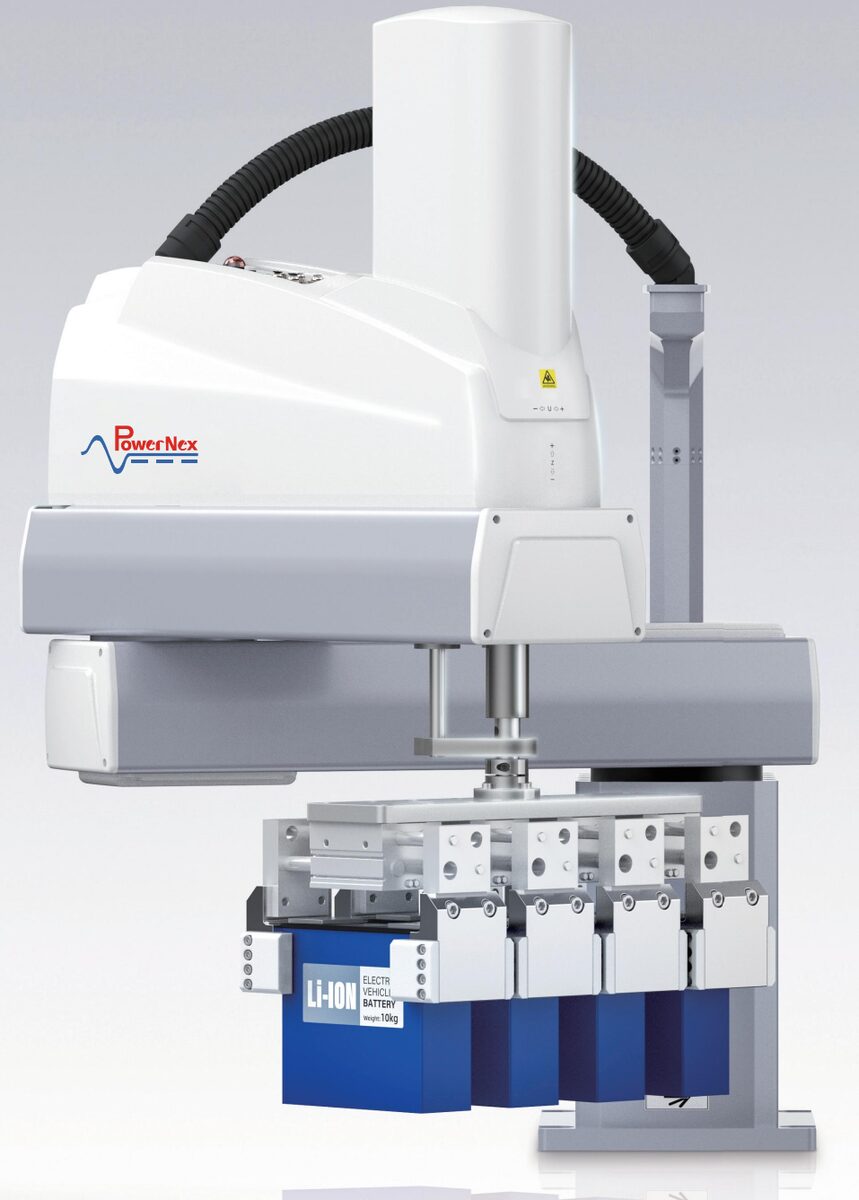

P100 Heavy-Duty SCARA Robot
