Cabinet component
WD6 Plug-In Spring Terminal Blocks (Push-In)
by WeiDe Electric · Shanghai · Spring terminal blocks
DIN-rail push-in terminal blocks for wires from 1.5 to 16 mm2. Offered in single, double, three and multi-layer versions.
8 models in this family
WD6-1.5WD6-2.5WD6-4WD6-6WD6-10WD6-16WD6-2.5/2/2WD6-2.5/2/3
Get a delivered price for your plant
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with WeiDe Electric, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Series | WD6 |
|---|---|
| Connection | Push-in spring |
| Wire sizes | 1.5, 2.5, 4, 6, 10, 16 mm2 |
| Layers | Single, double, three, multilayer |
| Variants include | /3, /4, -DIO, -PV, -S, HESI, -MTK, -IO, -FX versions |
As printed in the WeiDe Electric catalog, page 3. Confirm final specs in your quote.
What it does well
- Tool-free push-in wiring
- Single to multi-layer options
- Wide 1.5 to 16 mm2 range
Applications
Wiring of control cabinetsSignal and power distribution
Industries
Machine buildingControl cabinetsFactory automation
More from WeiDe Electric

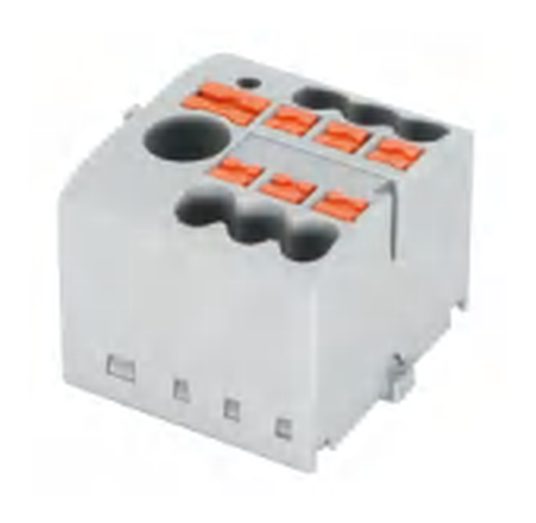

WD16 Plug-In Branch Terminal Blocks
4 sizesCabinet component · WeiDe Electric
4 models

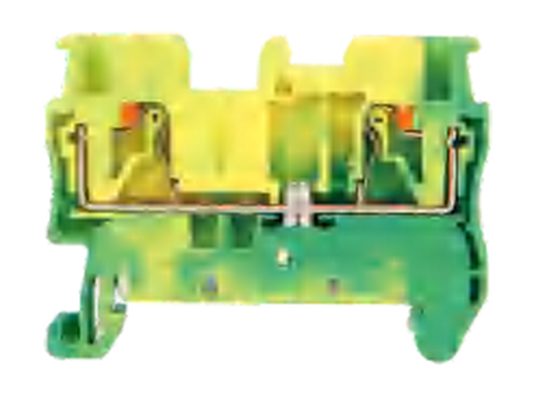

WD6 PE Plug-In Spring Grounding Terminals
7 sizesCabinet component · WeiDe Electric
7 models

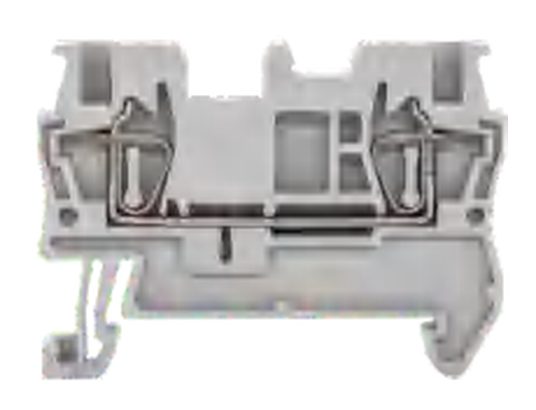

WD5 Pull-Back Spring Terminal Blocks
7 sizesCabinet component · WeiDe Electric
7 models

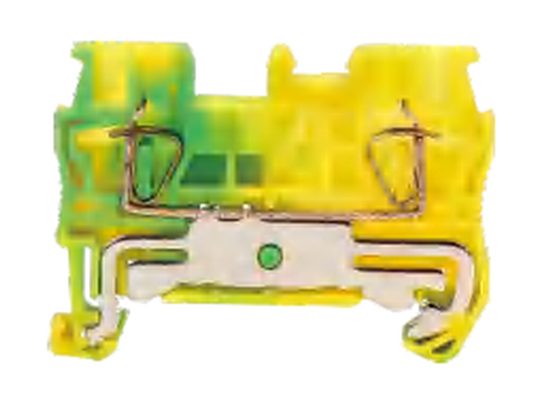

WD5 PE Pull-Back Spring Grounding Terminals
4 sizesCabinet component · WeiDe Electric
4 models

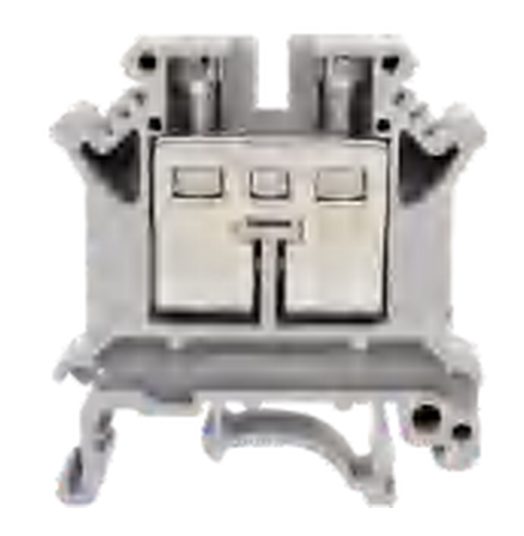

WUK European-Style Screw Terminal Blocks
