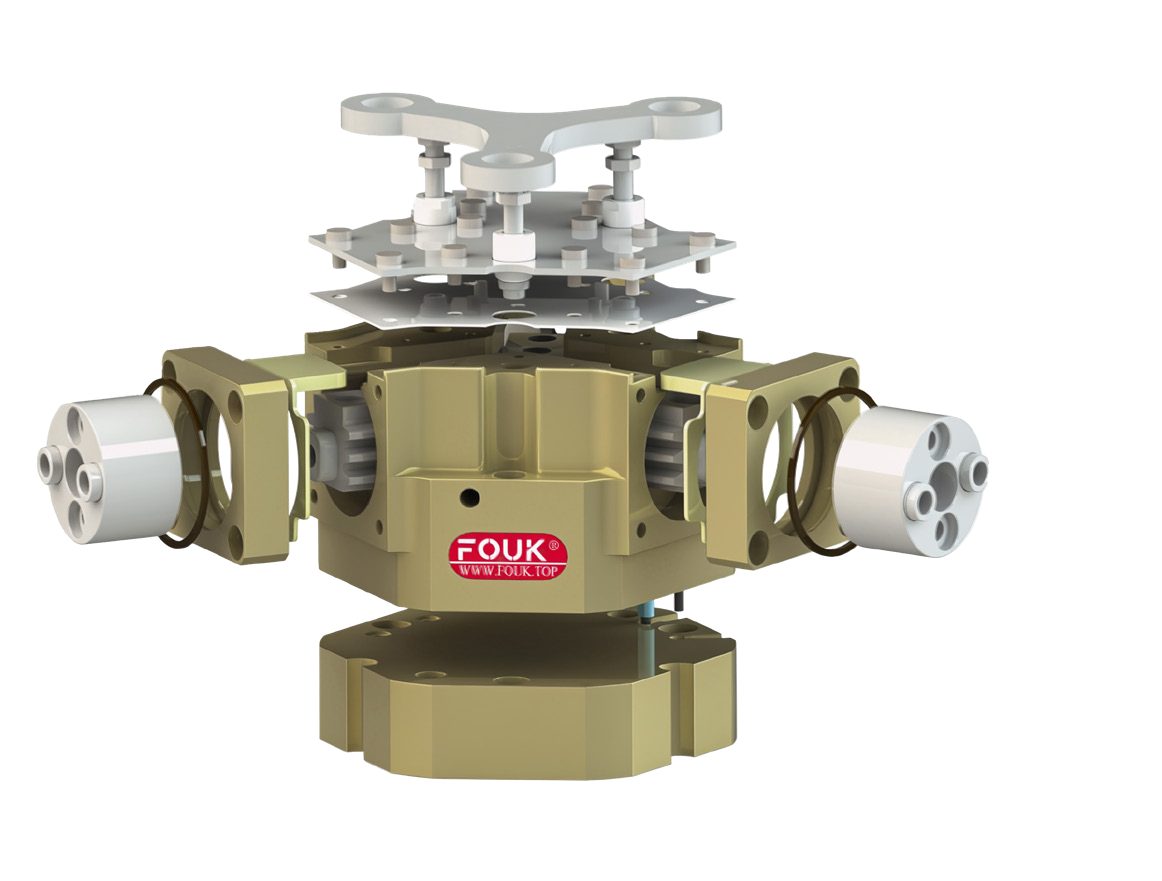

TZF IP67 Sealed Three-Finger Gripper
by FOUK · Hangzhou, Zhejiang · TZF series
Sealed three-finger gripper with composite sealing and a toothed rail for harsh, high-pollution conditions.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with FOUK, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| TZF42 | Stroke 6 mm; 0.8 kg; workpiece 2.6 kg |
|---|---|
| TZF55 | Stroke 8 mm; 1.3 kg; workpiece 5 kg |
| TZF70 | Stroke 10 mm; 2.4 kg; workpiece 8 kg |
| TZF90 | Stroke 13 mm; 3.5 kg; workpiece 12 kg |
| TZF125 | Stroke 16 mm; 8.8 kg; workpiece 30 kg |
| TZF160 | Stroke 25 mm; 15.5 kg; workpiece 31 kg |
| Air purge pressure allowed | 0.2~0.5 bar |
| Protection | IP67 with air purge, otherwise IP54 |
As printed in the FOUK catalog, page 49. Confirm final specs in your quote.
What it does well
- IP67 composite sealing
- Three-tooth guide rail
- Wedge drive with high centering accuracy
