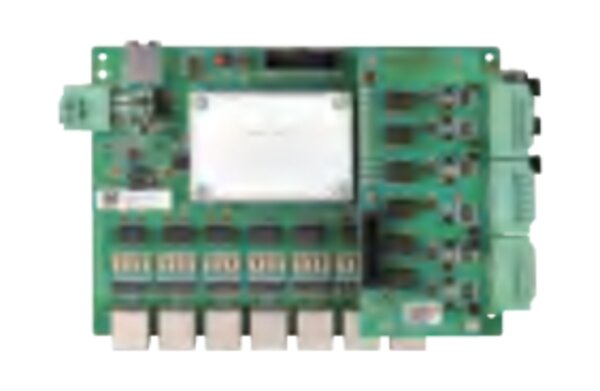

MES Series Embedded Ethernet Switch Boards

by Maisvch · Wuhan, Hubei · MES series

Embedded Ethernet switch boards with 3 to 10 ports and wide-range DC input, for integration into customer equipment. Listed in the catalog under its Intrinsically Safe Ethernet Switch heading.

11 models in this family

MES3105-5GTMES3105-GS/M-4GTMES3106G-2GF-4GTMES5104-2FMES5105A-2FMES5105C-2/3FMES5105BP-3F-2CANMES7110-3GFMES7106GMES710GAMES7108BP-2GF-2TPoE-DC24

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Maisvch, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Models (examples)	MES3105-5GT, MES3105-GS/M-4GT, MES3106G-2GF-4GT, MES5104-2F, MES5105A-2F, MES5105C-2/3F, MES5105BP-3F-2CAN, MES7110-3GF-..., MES7106G, MES710GA, MES7108BP-2GF-2TPoE-DC24
Port count	3 to 10
Power input	DC5~32V, DC6~32V, DC9~24V, DC9~36V (by model)
Operating temperature	-40 to +85 °C (some +70 °C)
Mounting	Embedded
Size	76 x 66 x 13.6 mm up to 185 x 140 x 26.2 mm
Switching bandwidth	1.2 Gbps to 14 Gbps

As printed in the Maisvch catalog, page 15. Confirm final specs in your quote.

What it does well

Board-level, embedded mounting
-40 to +85 °C on most models

Applications

Equipment OEM integration

Industries

Factory automationTransportationPower and utilitiesSmart city
