BRTMD Palletizing Workstation (30, 35 and 50 kg)
by BORUNTE · China · Palletizing workstation

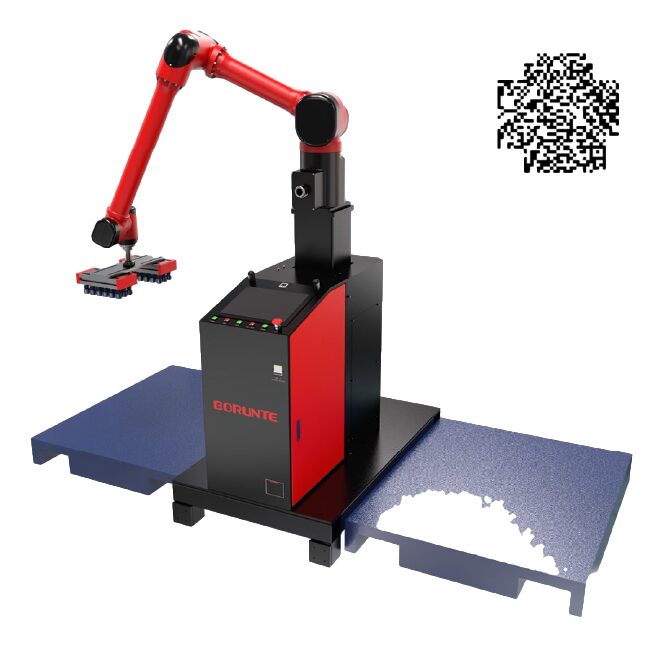

Palletizing workstation with a collaborative-style arm on a lifting platform and a dedicated palletizing touchscreen system. Plug and play, programmable within 10 minutes, bilingual operation.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with BORUNTE, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | BRTMD163001A / BRTMD193501A / BRTMD195001A |
|---|---|
| Max load | 30 kg / 35 kg / 50 kg |
| Max arm span | 1600 mm / 1895 mm / 1895 mm |
| Palletizing height | 2150 mm / 2350 mm / 2350 mm (including pallet height) |
| Palletizing speed | up to 7 / 9-10 / 7-8 pcs/min |
| Lifting platform stroke | 0-500 mm |
| Repeatability | ±0.1 mm |
As printed in the BORUNTE catalog, page 21. Confirm final specs in your quote.
What it does well
- Plug-and-play integrated design
- Graphical programming in under 10 minutes
- Standard lifting platform 0-500 mm
- Left and right double-pallet palletizing
- Conveyor connection holes reserved
