Robots /Palletizers /YSR-2 Two-Axis Palletizing Robot (20-520 kg)
YSR-2 Two-Axis Palletizing Robot (20-520 kg)
Palletizer

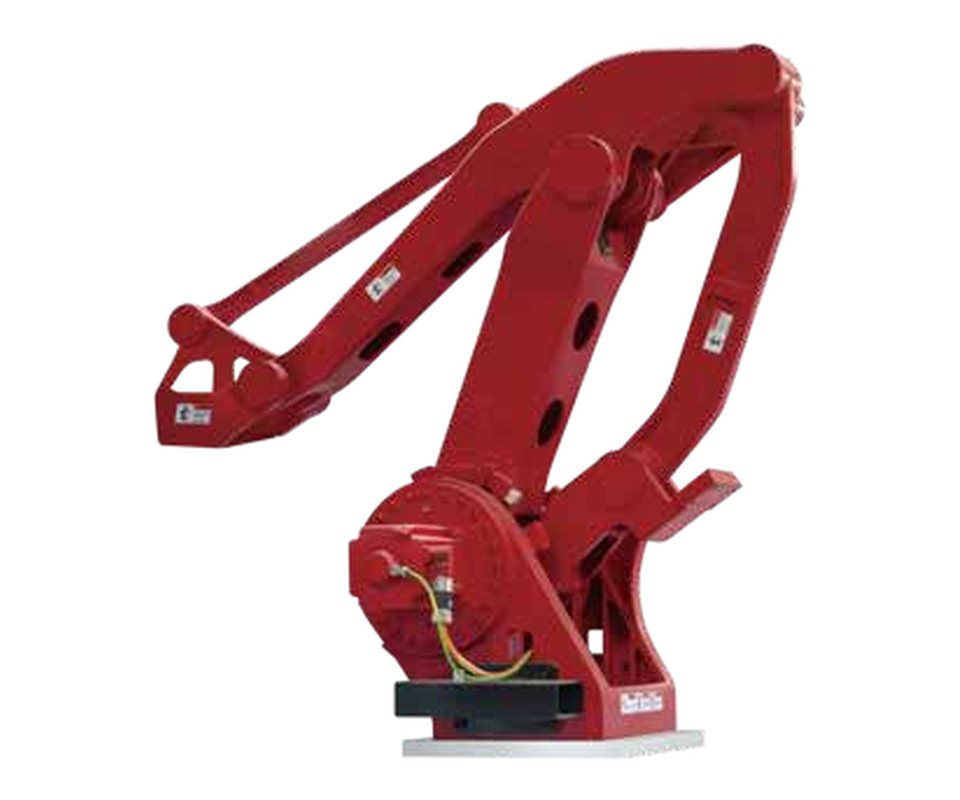

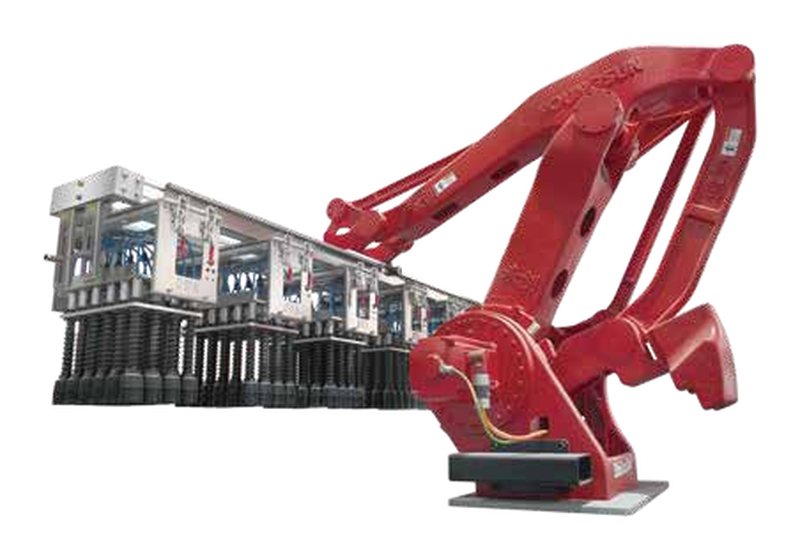

YSR-2 Two-Axis Palletizing Robot (20-520 kg)

by Youngsun · Hangzhou, Zhejiang · YSR-2 series

Youngsun's own two-axis palletizing robots, from a 20 kg ceiling-mounted unit to floor-mounted 180, 220 and 520 kg models for case and bag palletizing at the end of a line.

Key specs
Payload
520 kg1,146 lb
Repeatability
±0.5 mm±0.0197 in
Weight
1,100 kg2,425 lb
4 models in this family
YSR-2-20-CYSR-2-180-FYSR-2-220-FYSR-2-520-F
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Rated payload (YSR-2-520-F)520 kg
Working area1,200 x 1,600 mm
MountingFloor
Robot weight1,100 kg
Pose repeatability+-0.5 mm
Floor area430 x 510 mm
Axis A2 range+40 to -85 deg
Axis A3 range+15 to -115 deg
Max speed A2 / A360 deg/s
YSR-2-20-C payload / area / mount20 kg / 400 x 800 mm / ceiling, 190 kg
YSR-2-180-F payload / area180 kg / 1,000 x 1,470 mm, 650 kg
YSR-2-220-F payload / area220 kg / 1,200 x 1,600 mm, 950 kg

As printed in the Youngsun catalog, page 52. Confirm final specs in your quote.

What it does well

  • Floor or ceiling mounting
  • Payloads from 20 to 520 kg
  • Same +-0.5 mm repeatability across the range

Applications

Case palletizingBag palletizingLayer palletizing

Industries

Food and beverageLogisticsPackaging
