Robots /Palletizers /YS-R470 Robot Servo Palletizing System
YS-R470 Robot Servo Palletizing System
Palletizer

YS-R470 Robot Servo Palletizing System

by Youngsun · Hangzhou, Zhejiang · YS-R470 series

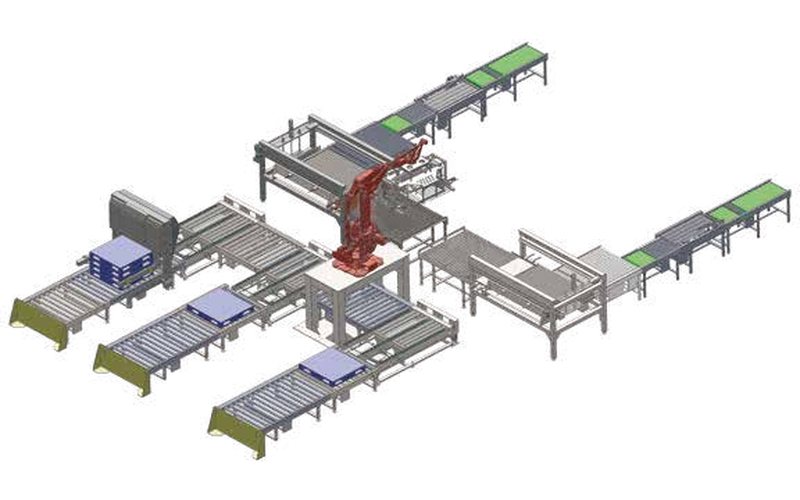

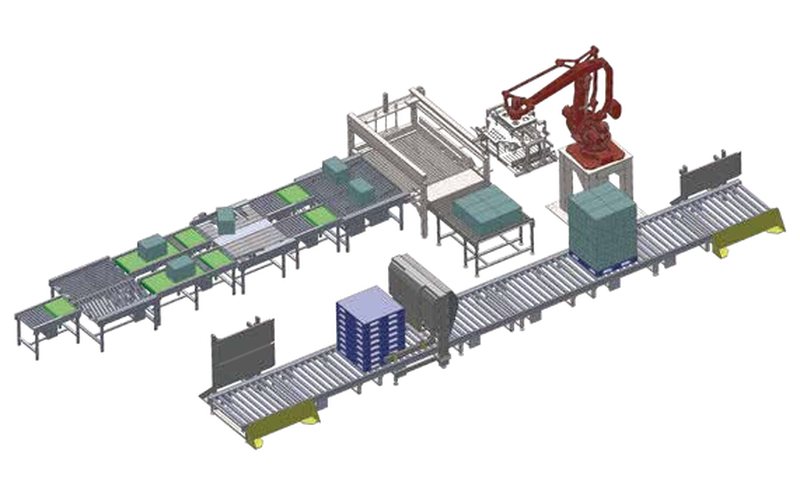

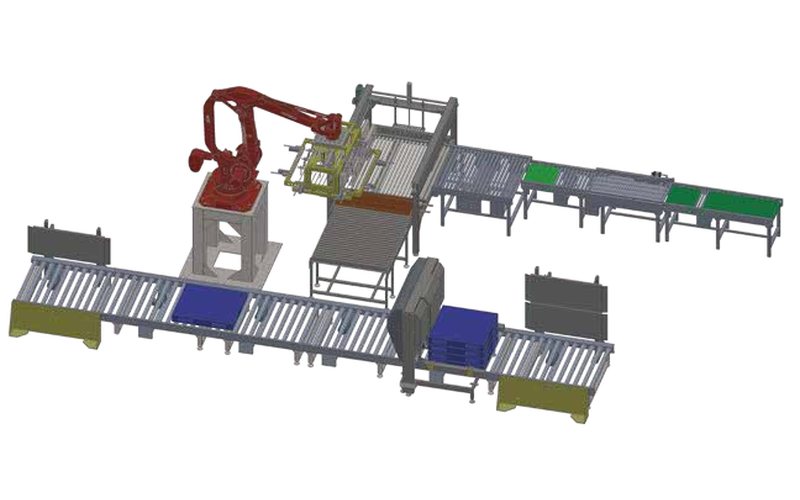

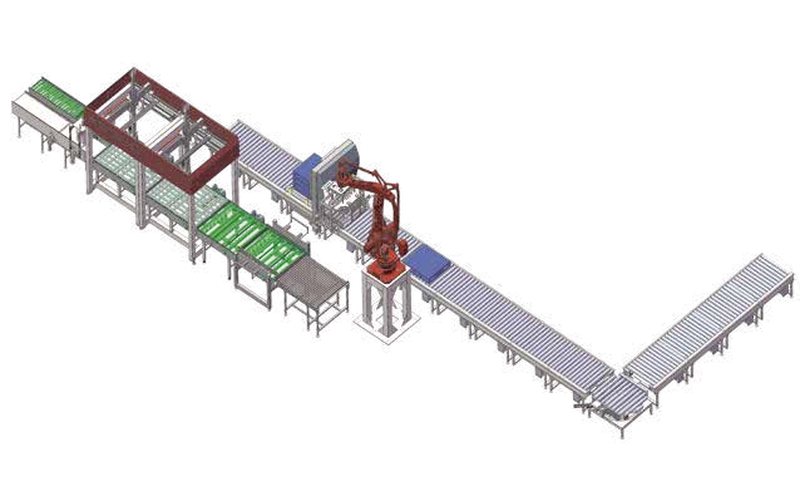

Complete palletizing lines built around a Youngsun robot, with conveyors, pallet handling and optional slip-sheet feeder for cartons, film packs and plastic crates.

Key specs
Speed
6 layers/min
Power
64.3 kW
5 models in this family
YS-R470-MD45YS-R470-MD70-IYS-R470-MD70-IIYS-R470-MD80YS-R470-MD80T
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelYS-R470-MD80T
Power20 + 44.3 kW (Youngsun robot)
Power supply3P AC380V 50Hz
Air pressure0.6-0.8 MPa
Speed6 layers/min
Air consumption550 L/min
ApplicationCartons, film packages, plastic boxes
YS-R470-MD805 layers/min, 27 + 26.9 kW, 500 L/min
YS-R470-MD70-I / II4.5 layers/min, 16.5 + 26.9 kW, 400 L/min
YS-R470-MD453 layers/min, 16.5 + 26.9 kW, 400 L/min

As printed in the Youngsun catalog, page 56. Confirm final specs in your quote.

What it does well

  • Own robot, conveyors and controls from one supplier
  • Five throughput classes
  • Division plate (slip sheet) optional on MD70-I

Applications

Layer palletizingCarton palletizingCrate palletizing

Industries

Food and beverageLogisticsPackaging
