Underride Forklift AGV Family (600 to 1,500 kg)
by JATEN Robotics · Shunde (Foshan), Guangdong · Underride forklift AGV (FL)

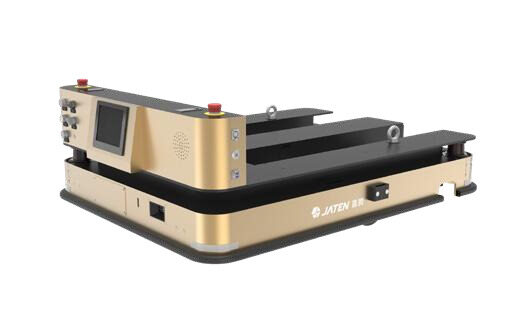

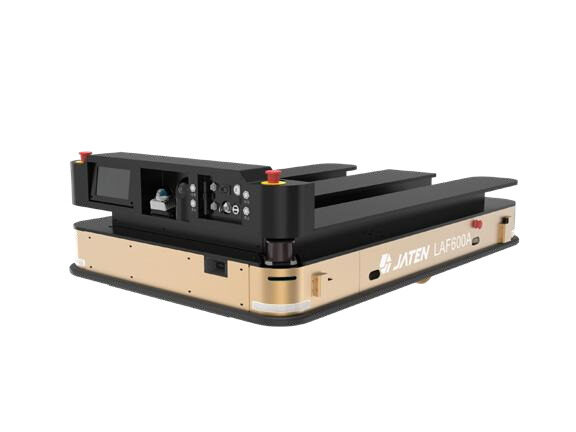

Reach-type fork arm hidden in the body: the AGV slides under, extends forks to pick up goods, retracts them and carries the load. Five models from 600 kg to 1,500 kg.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with JATEN Robotics, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications

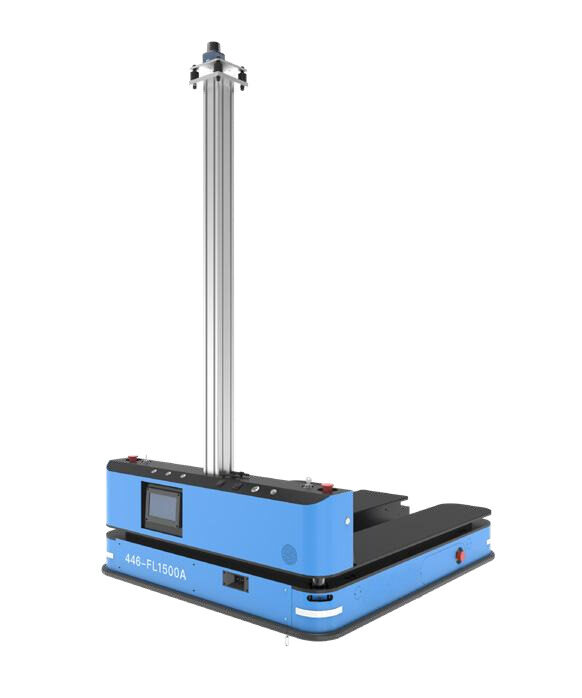

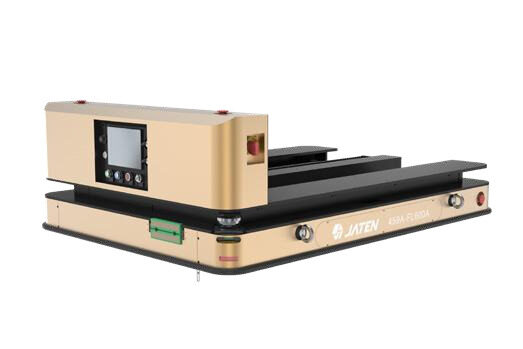

| Models | AGV-446-FL1500A-R2S / AGV-409-FL600A-R2S / AGV-407-FL600B-R2S / AGV-408-FL1200A-R2S / AGV-459A-FL600A-NDC |
|---|---|
| Overall dimensions | 1250*1150*1990 mm / 1390*930*400 mm / 1402*1012*339 mm / 1425*1075*495 mm / 1666*1176*545 mm |
| Net weight | 479 kg / 393 kg / 310 kg / 466 kg / 466 kg |
| Rated load | 1500 kg / 600 kg / 600 kg / 1200 kg / 600 kg |
| Navigation method | Natural + QR Code (NDC + natural + QR on AGV-459A) |
| Forward speed (unloaded / loaded) | 1.0 / 0.9 m/s; 1.0 / 0.9 m/s; 1 / 0.8 m/s; 1.5 / 1.2 m/s; 1.5 / 1.2 m/s |
| Fork height above ground | 110 ±2 mm / 95 mm / 95 mm / 90 mm / 105 mm |
| Maximum fork arm lifting height | 255 mm / 300 mm / 250 mm / 375±5 mm / 320 mm |
| Extended length | 1040 mm / 1240 mm / 1300 mm / 1215 mm / 1250 mm |
| Minimum turning diameter | Rotate in place 810 / 800 / 820 / 850 / 985 mm |
| Stopping accuracy | ±10 mm |
| Battery voltage | DC48V 40AH / 40AH / 32AH / 40AH / 40AH |
| Charging / endurance | 1.5h / 8h; 1.5h / 6h; 1.5h / 5h; 1.5h / 6h; 1.5h / 7~8h |
As printed in the JATEN Robotics catalog, page 67. Confirm final specs in your quote.
What it does well
- Fork arm hidden inside the body
- Fork height as low as 90 mm
