Gongshu Series Hybrid Mobile Robot
by KAANH · Shenzhen, Guangdong (also Shanghai) · Gongshu Series

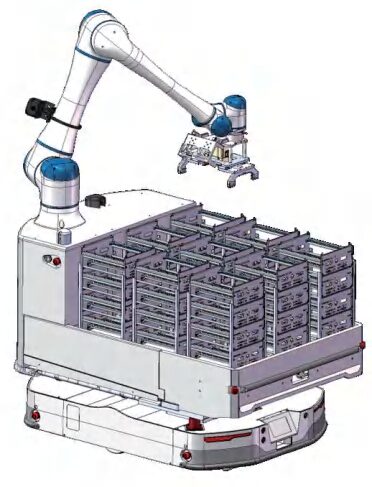

A collaborative arm mounted on a laser-SLAM AGV that moves, recognizes and grasps. It transfers wafer cassettes, magazines, trays and CNC parts between process equipment and loads and unloads machines.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KAANH, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| AGV positioning accuracy | ±10 mm / 1° |
|---|---|
| Collaborative arm repeat positioning accuracy | ±0.02 mm |
| Eye-in-hand calibration accuracy | ±0.2 mm |
| 6-axis force/torque resolution | ±1 N / ±0.1 Nm |
| Collaborative arm working radius | 1323 mm |
| Arm payload capacity | 16 kg |
| Robot weight | 250 kg |
| Dimensions | 1240x800x1700 mm |
| Battery | 48V/60Ah |
| Operating duration | 4-8 h |
| Chassis payload capacity | 100 kg |
| Gradeability | 3° to 5° |
| Moving speed | 1.5 m/s |
| Mobility direction | Omnidirectional |
| Vision system | 2D/3D |
| Navigation mode | LiDAR navigation |
| Gap traversal capability | 30 mm |
| Change line time | 1 day |
| Cycle time | 35 s |
As printed in the KAANH catalog, page 9. Confirm final specs in your quote.
What it does well
- Laser SLAM or QR-code navigation, no factory modification needed
- Eye-in-hand 2D/3D vision for secondary positioning
- Self-developed force control for fine assembly and loading
- Web interface for MES/WMES integration
- Customizable IP protection ratings
