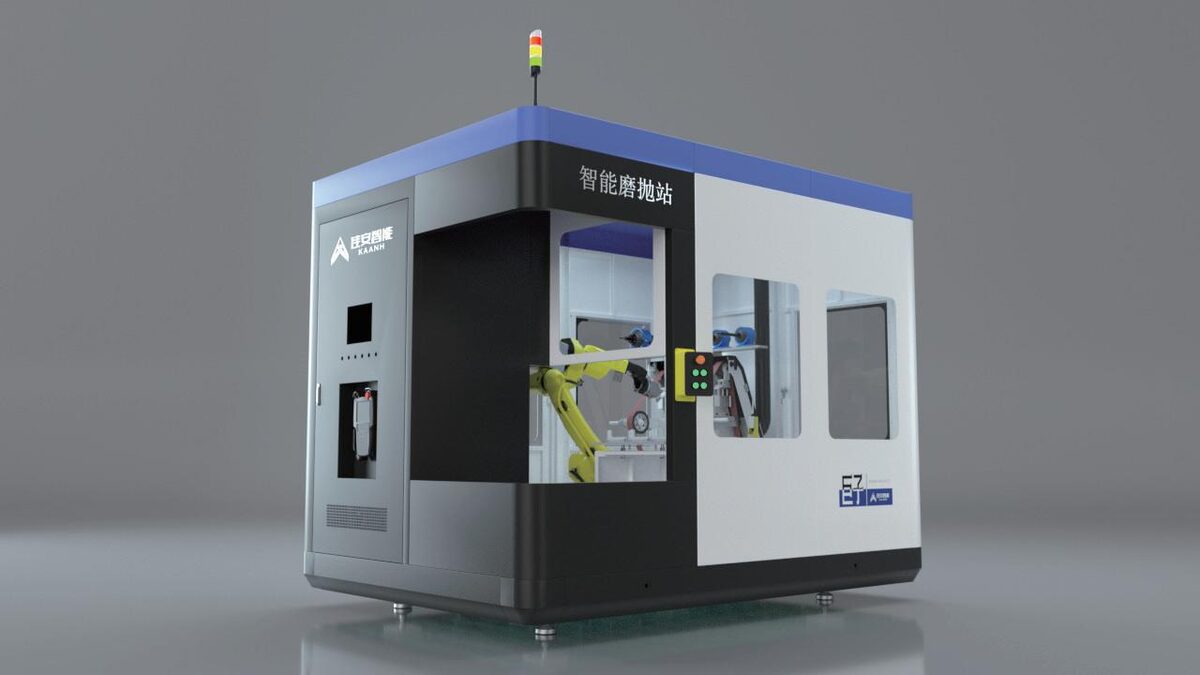

Juzi Series Intelligent Grinding and Polishing Workcell

by KAANH · Shenzhen, Guangdong (also Shanghai) · Juzi Series

A safety-enclosed grinding and polishing cell for die-cast and cast metal parts. A six-axis robot handles the tool or workpiece for automated deburring and surface finishing, with optional force control and 3D vision. Three sizes from compact to large.

Key specs

Payload

210 kg463 lb

Repeatability

±0.05 mm±0.002 in

3 models in this family

Compact WorkcellMedium WorkcellLarge Workcell

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KAANH, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Sizes	Compact / Medium / Large workcell
Equipment dimensions	2900x2100x2400 mm / 3750x2400x2600 mm / 4000x4600x3000 mm
Workpiece dimensions	150x150x100 mm / 200x200x200 mm / 1500x1000x500 mm
Max load of robotic arm	12 kg / 35 kg / 210 kg
Force/torque control accuracy	±1 N / ±2 N / ±3 N
End load (incl. workpiece and fixture)	5 kg / 15 kg / 150 kg
Dimensional machining accuracy	±0.1 mm
Equipment repeat positioning accuracy	±0.05 mm
Load per unit area	500 kg/m²
Standard configuration	Robot system, material handling station, base frame with enclosure, intelligent grinding/polishing software, control system cabinet, belt grinders (by size)
Optional modules	Compliance spindles, vertical belt grinder, vertical polisher, 6-axis force/torque sensors, measurement station, 3D scanner, dust collector, tool and gripper quick-change

As printed in the KAANH catalog, page 7. Confirm final specs in your quote.

What it does well

Safety-enclosed sheet metal housing with integrated dust extraction
Rapid offline path generation and autonomous process parameters
Dual-station material handling
Quick-change tooling and adaptive tool switching
Active force control with real-time force sensing

Applications

DeburringSurface finishingGrinding and polishing of cast and die-cast parts

Industries

AerospaceAluminum alloy castingRail transit3C electronicsMedical devicesNew energyAutomotive and partsPrecision castingBuilding steel structuresKitchenware and cutleryDoor and security hardwareBathroom hardwareFurniture hardware
