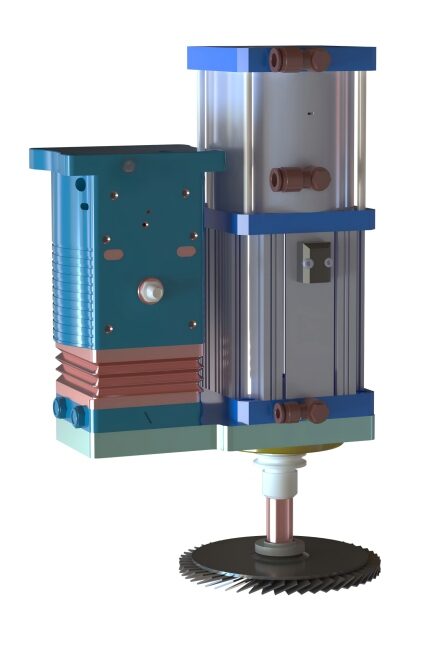

120N Force Compliance Device
by XARP · Wenzhou, Zhejiang · Force Compliance Device
A constant-force floating actuator that fits onto a robot flange so an existing robot can grind and polish with controlled contact force.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with XARP, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Rated power | 1.5/2.2 kW |
|---|---|
| Force control range | 120 N |
| Force control accuracy | ±1 N |
| Stroke | 15 mm |
| Rated speed | 3600 RPM |
| Tool interface | ER25 |
| Cooling method | Self-cooling |
| Rated torque | 3.4 Nm |
| Duty cycle | 100% |
As printed in the XARP catalog, page 6. Confirm final specs in your quote.
What it does well
- Independent carriage technology isolates vibration
- ER25 interface fits mainstream consumables
- All-attitude active compliance with real-time feedback
- Up to 6000 RPM electric spindle option
