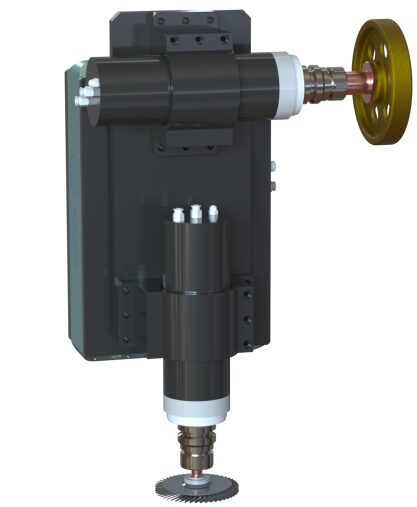

300-500N Heavy-Duty Force Compliance Device
Grinding cell

300-500N Heavy-Duty Force Compliance Device

by XARP · Wenzhou, Zhejiang · Force Compliance Device

A high-power force-control floating spindle for heavy grinding and surface finishing, with active vibration suppression.

3 models in this family
2.2 kW3.0 kW4.5 kW
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with XARP, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Rated power2.2 / 3.0 / 4.5 kW
Force control range5-300 / 10-500 N
Force control accuracy±5 N
Stroke20 mm
Rated speed12,000 RPM (max 14,000)
Tool interfaceBT30-ER25
Vibration suppressionActive vibration suppression
Rated torque3.6 Nm

As printed in the XARP catalog, page 6. Confirm final specs in your quote.

What it does well

  • Three power levels from precision polishing to heavy grinding
  • Active vibration suppression improves surface quality and tool life
  • 10 ms force-control response
  • Plug-and-play fit to existing robots

Applications

Heavy grindingHigh-power surface finishing

Industries

Foundry and castingsMachineryAerospace
