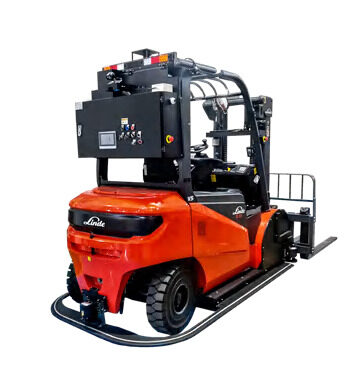

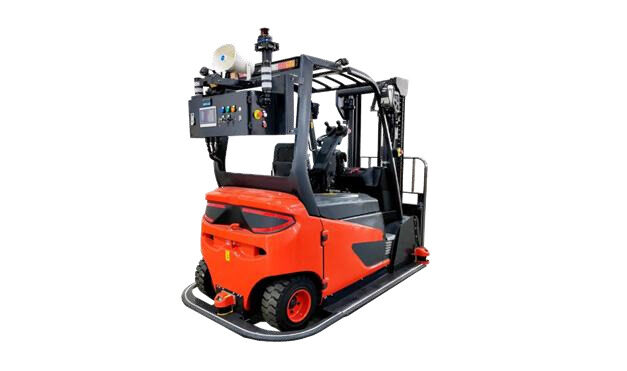

Counterbalance Forklift AGV Family (2,000 to 3,500 kg)
by JATEN Robotics · Shunde (Foshan), Guangdong · Counterbalance forklift AGV
Indoor counterbalance forklift AGVs with hydraulic lifting and configurable mast, operating from 0 to 50 C. Three sizes from 2,000 kg to 3,500 kg.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with JATEN Robotics, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | LN2000-E20PH-NDC / LN3000-E30S-NDC / AGV-E35S-F3500A-NDC |
|---|---|
| Overall dimensions | 3300*1158*4080 mm / 2582*1504*3161 mm / 3016*1601*4533 mm |
| Net weight (with battery) | 3810 kg / 4960 kg / 7500 kg |
| Rated load | 2000 kg / 3000 kg / 3500 kg |
| Navigation method | NDC Laser Navigation |
| Travel speed (forward / reverse / turning) | 1500 / 600 / 500 mm/s |
| Acceleration | 400 mm/s2 |
| Gradeability | 5% / 5% / 18% |
| Right-angle stacking aisle | 4300 mm / 3880 mm / 5000 mm |
| Load center distance | 500 mm / 500 mm / 600 mm |
| Stopping accuracy | ±15 mm / ±15 mm / ±10 mm |
| Lifting stroke | 3250 mm / 2850 mm / 2850 mm |
| Battery voltage | DC48V 500AH / DC80V 519AH / DC80V 440AH |
| Charging / endurance | 2h / 5h; 3h / 6h; 4h / 8h |
| Charging | Opportunity Side Charging |
| Operating temperature | 0-50 C |
As printed in the JATEN Robotics catalog, page 63. Confirm final specs in your quote.
What it does well
- High stability, strong load capacity
- Mast options for 4,500-5,000 mm lift heights
