Pedestrian-Style Stacker AGV Family (600 to 2,000 kg)
by JATEN Robotics · Shunde (Foshan), Guangdong · Stacker AGV
Compact electric stacker AGVs with hydraulic lift for warehouses, workshops and logistics centers. Five models from 600 kg to 2,000 kg.
Key specs
Payload
2,000 kg4,409 lb
Weight
1,569 kg3,459 lb
5 models in this family
AGV-432B-FH600B-NDCAGV-399A-F1500A-R9AGV-MB1616-F1600A-NDCAGV-MB2045-F2000A-NDCLN1600-L16-NDC
Get a delivered price for your plant
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with JATEN Robotics, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications

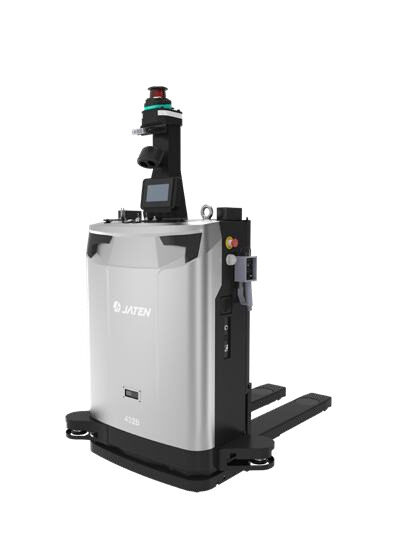

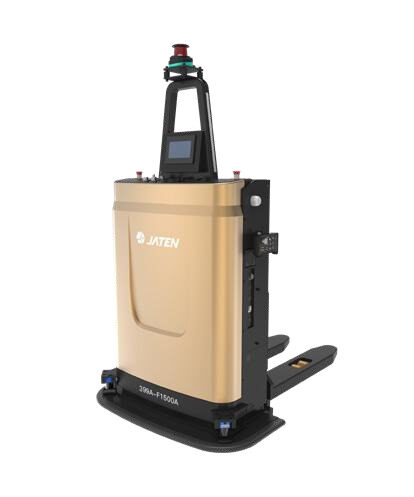

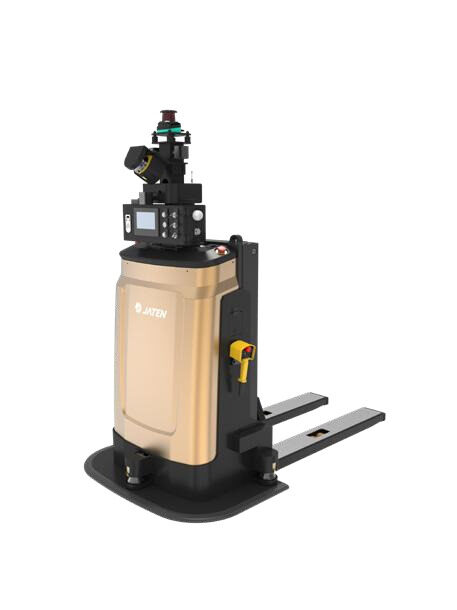

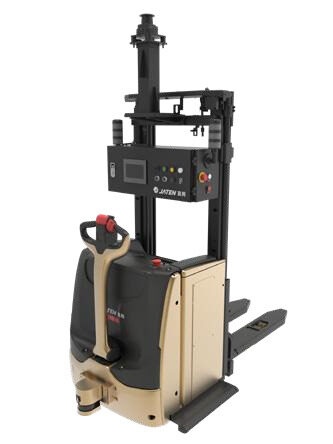

| Models | AGV-432B-FH600B-NDC / AGV-399A-F1500A-R9 / AGV-MB1616-F1600A-NDC / AGV-MB2045-F2000A-NDC / LN1600-L16-NDC |
|---|---|
| Overall dimensions | 1803*1089*1988 mm / 1721*1089*1982 mm / 2057*1150*2052 mm / 2282*1168*2352 mm / 2180*1045*2986 mm |
| Net weight (with battery) | 790 kg / 768 kg / 1148 kg / 1569 kg / 1600 kg |
| Rated load | 600 kg / 1500 kg / 1600 kg / 2000 kg / 1600 kg |
| Navigation method | NDC Laser (JTS Laser on AGV-399A-F1500A-R9) |
| Stopping accuracy | ±10 mm |
| Lifting stroke | 1000 mm / 1300 mm / 1600 mm / 4500 mm / 4230 mm |
| Battery voltage | DC48V 67AH / DC48V 100AH / DC24V 200AH / DC24V 200AH / DC24V 200AH |
| Charging / endurance | 2h / 6h; 1-2h / 5h; 2h / 6~8h; 2h / 6~8h; 1-2h / 5h |
| Charging | Opportunity Side Charging |
As printed in the JATEN Robotics catalog, page 59. Confirm final specs in your quote.
What it does well
- Compact design, small turning radius
- Electric drive with hydraulic lifting
Applications
Pallet handlingWarehouse stackingHigh-bay racking
Industries
WarehousingFood and beverageHardwareDaily chemicalsAirport cargo
