AGV / AMR

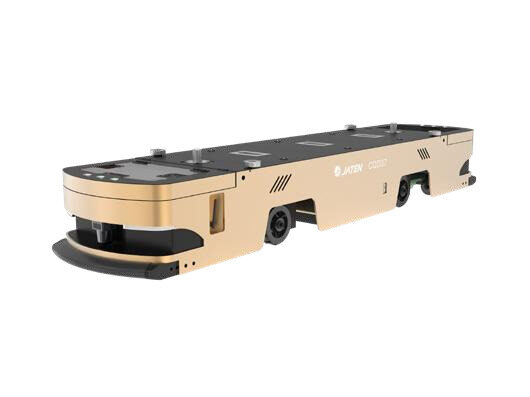

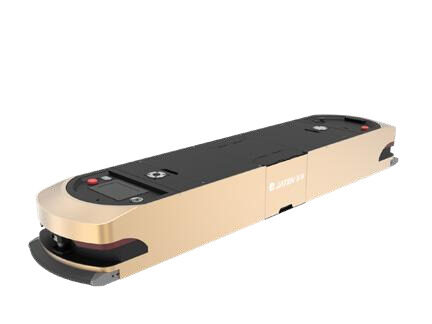

MC500-31 Magnetic Latent AGV Family
by JATEN Robotics · Shunde (Foshan), Guangdong · Latent AGV
Low, long latent AGVs that slide under carts and lift them with a pin. Three magnetic-navigation sizes from 500 kg to 1,200 kg.
Key specs
Payload
1,200 kg2,646 lb
Speed
≤0.5 m/s
Weight
260 kg573 lb
3 models in this family
MC500-31AGV-CQD37-MK1200AGV-D62-MC1000
Get a delivered price for your plant
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with JATEN Robotics, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | MC500-31 / AGV-CQD37-MK1200 / AGV-D62-MC1000 |
|---|---|
| Type | Latent AGV |
| Dimensions (MC500-31) | 1410*450*270 mm |
| Dimensions (AGV-CQD37-MK1200) | 2130*450*285 mm |
| Dimensions (AGV-D62-MC1000) | 2142*450*270 mm |
| Net weight | 150 kg / 260 kg / 236 kg |
| Rated load | 500 kg / 1200 kg / 1000 kg |
| Navigation | Magnetic Navigation |
| Travel direction | Forward / Backward / Turning |
| Forward speed | ≤0.5 m/s |
| Climbing ability | ≤2% |
| Minimum turning radius | 700 mm / 1200 mm / 800 mm |
| Stopping accuracy | ±10 mm |
| Lifting pin stroke | 50 mm / 50 mm / 40 mm |
| Battery | DC24V 80AH / DC24V 60AH / DC12V 80AH |
| Charging / endurance | 1-2h / 3-4h |
As printed in the JATEN Robotics catalog, page 31. Confirm final specs in your quote.
What it does well
- Under-cart latent docking
- Height only 270-285 mm
- Magnetic tape guidance
Applications
Pallet, cart and rack handlingLine-side dockingProduction line to warehouse transfer
Industries
Electronics manufacturingAutomotive partsHome appliancesNew energy
