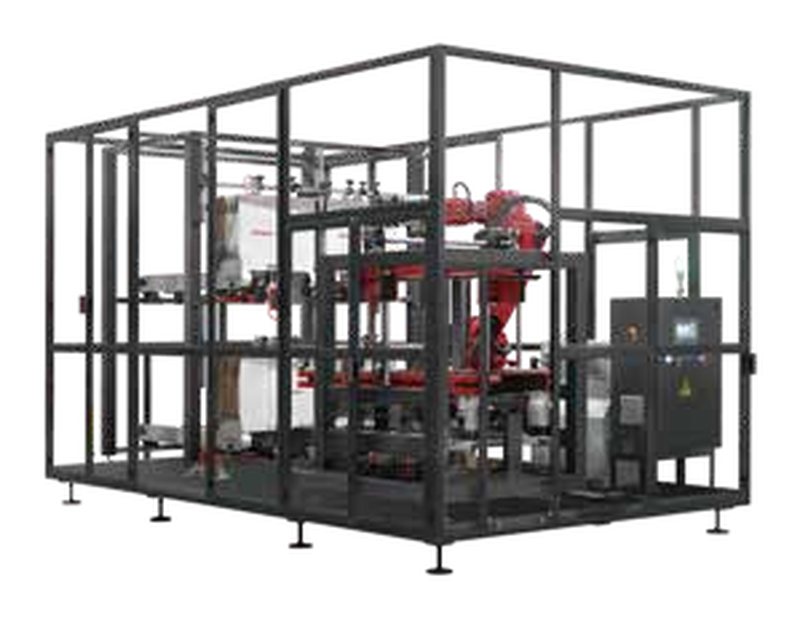

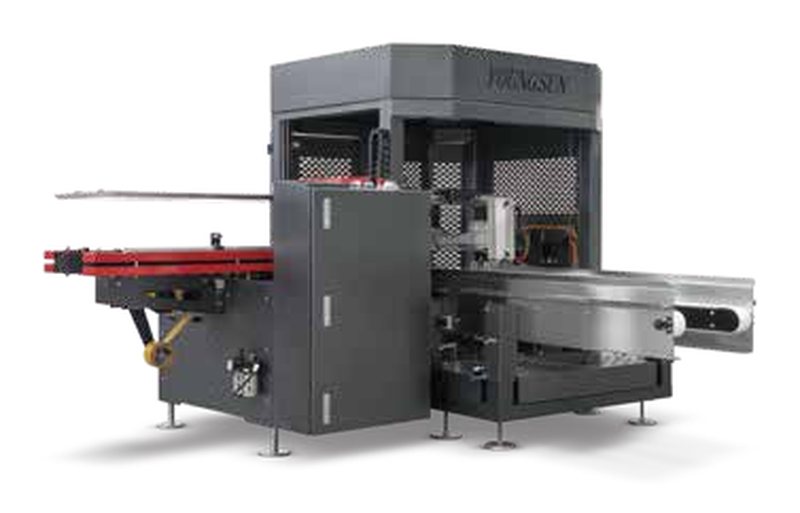

CF-25TB Robot Carton Erector
by Youngsun · Hangzhou, Zhejiang · CF series
Robot-arm carton erectors, a one-click unit at 20 to 30 boxes per minute and a multi-station unit sized to the carton.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| CF-25TB | 1P 220V 50Hz 4.6 kW, 2,710 x 2,480 x 2,180 mm, 1,000 kg, 20-30 boxes/min (standard box) |
|---|---|
| CF-YS620 | 220V 50Hz 6.7 kW, 4,050 x 2,220 x 2,400 mm, speed by box size |
| Tape width | 48-72 mm |
| Air pressure | 0.6-0.8 MPa |
As printed in the Youngsun catalog, page 32. Confirm final specs in your quote.
What it does well
- Robot arm opens the carton
- Single-phase 220V
Applications
Industries
