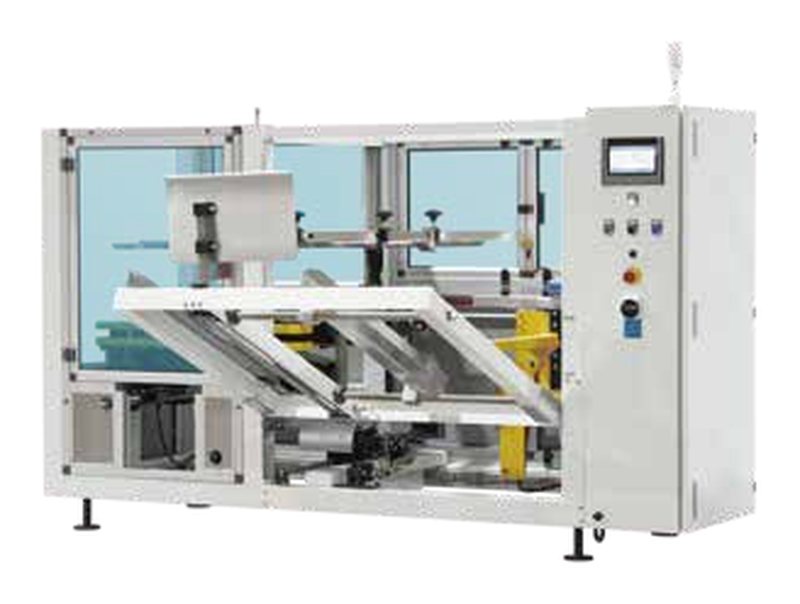

CF-30T and CF-20T Carton Erectors
by Youngsun · Hangzhou, Zhejiang · CF series
Mid-range carton erectors in tape or hot-melt versions, at 10 to 12 cartons per minute.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | CF-20TX, CF-20TN, CF-30T-F (tape), CF-30T-H (hot melt) |
|---|---|
| CF-20TX | 220V 50Hz 500 W, 2,450 x 1,950 x 1,500 mm, 450 kg, 10 boxes/min |
| CF-20TN | 220V 50Hz 500 W, 3,050 x 1,950 x 1,500 mm, 700 kg, 12 boxes/min |
| CF-30T | 380V 50Hz 1.5 kW, 2,700 x 1,560 x 1,900 mm, 1,100 kg |
| Tape width | 48-72 mm |
| Air pressure | 0.6-0.8 MPa |
As printed in the Youngsun catalog, page 31. Confirm final specs in your quote.
What it does well
- Tape or hot-melt closing
