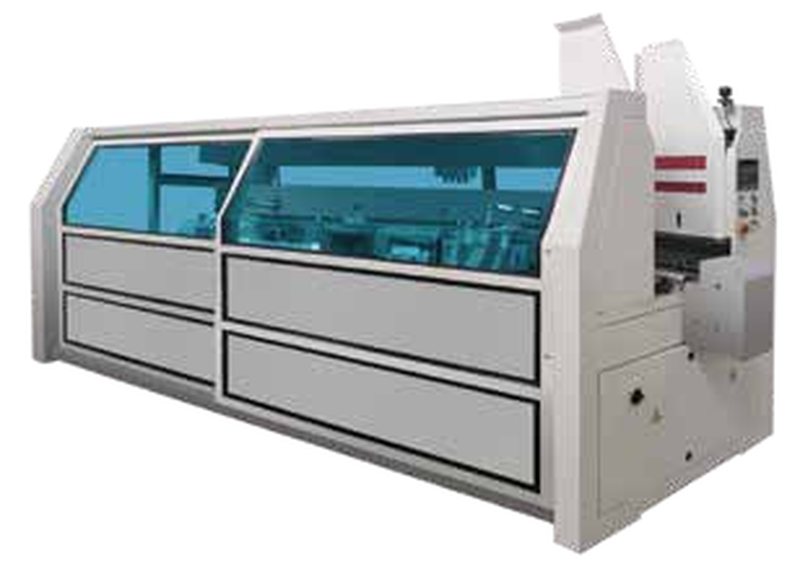

CF-40T Servo Carton Erector Series
Packaging line

CF-40T Servo Carton Erector Series

by Youngsun · Hangzhou, Zhejiang · CF series

Automatic carton erectors for tape or hot-melt closing, with up to four servo axes and 20 to 50 cartons per minute.

Key specs
Speed
20-40(50) boxes/min
Weight
2,000 kg4,409 lb
5 models in this family
CF-40T-DCF-40T-FCF-40T-GSCF-40T-HCF-40T-TH
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsCF-40T-D (4 servos), CF-40T-F (1 servo), CF-40T-GS (3 servos), CF-40T-H (dual use, 3 servos), CF-40T-TH (dual use, 2 servos)
Power3P AC380V 50Hz, 4.5 / 2.5 / 3.5 kW (F, D, GS); 8 / 7 kW (H, TH)
Speed20-40 (50) boxes/min; dual-use 20-50 boxes/min
Machine sizeL2831 x W2671 x H1900 mm and larger
Working table height1,000 +-50 mm
Tape width48-72 mm
Machine weight2,000 kg (F, D, GS); 4,000 kg (H, TH)

As printed in the Youngsun catalog, page 31. Confirm final specs in your quote.

What it does well

  • Tape or hot-melt closing
  • Up to four servo axes

Applications

Carton forming

Industries

Food and beverageLogisticsPackaging
