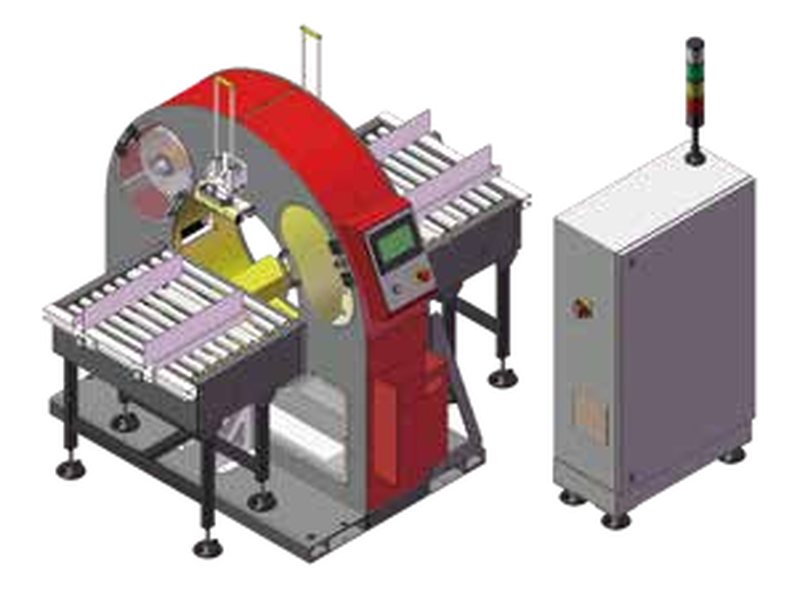

MH-CTR Horizontal Orbital Wrapper
by Youngsun · Hangzhou, Zhejiang · MH-CTR series
Horizontal wrappers that spin film around long or round loads such as pipes, profiles and rolls.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | MH-CTR-060, MH-CTR-200BD |
|---|---|
| MH-CTR-200BD rotating speed | 5-30 rpm |
| Film width | 250 mm (10 in) |
| Pre-stretch | 250% (adjustable) |
| Round package | dia 900-1,750 mm |
| Machine size | 1,630 x 2,725 x 2,725 mm |
| Machine weight | 1,260 kg |
| MH-CTR-060 | 5-100 rpm, round pack dia 102-330 mm, 315 kg |
As printed in the Youngsun catalog, page 51. Confirm final specs in your quote.
What it does well
- Several film carriage options
Applications
Industries
