Robots /Packaging lines /MH-FG-2000 Pre-Stretch Turntable Pallet Wrapper

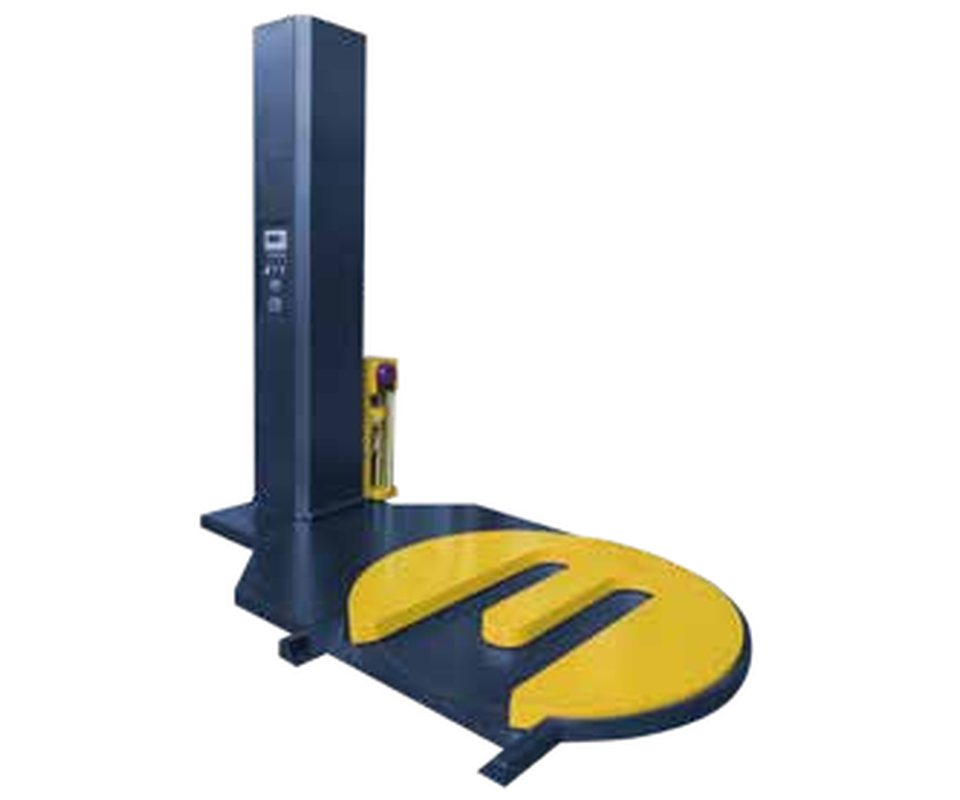

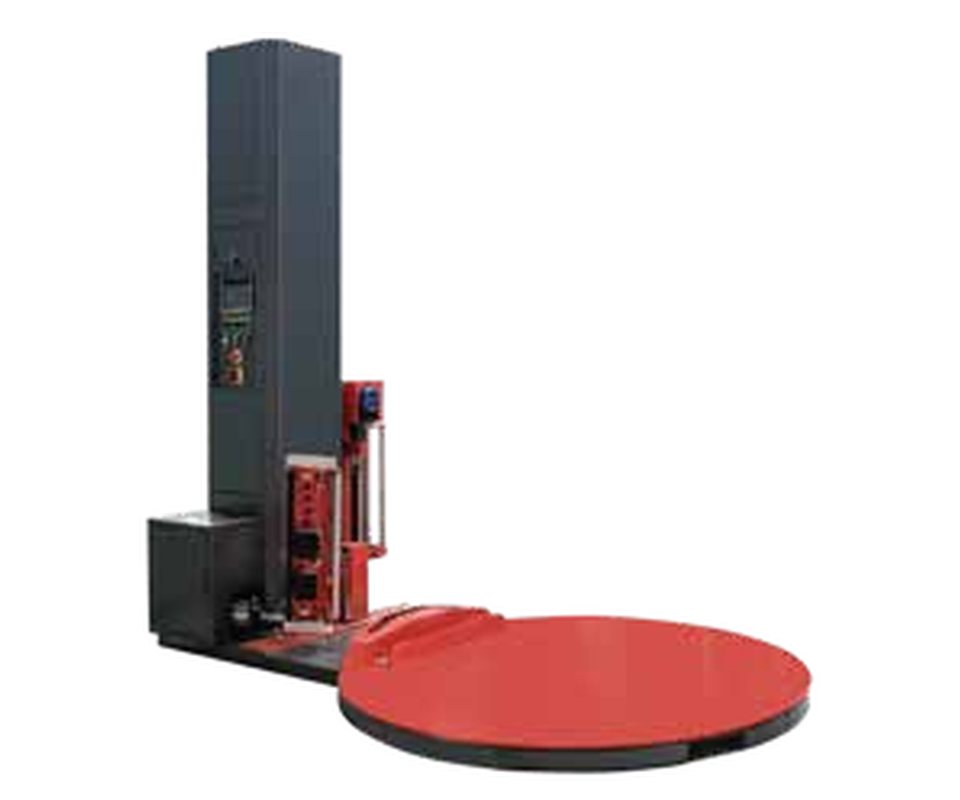

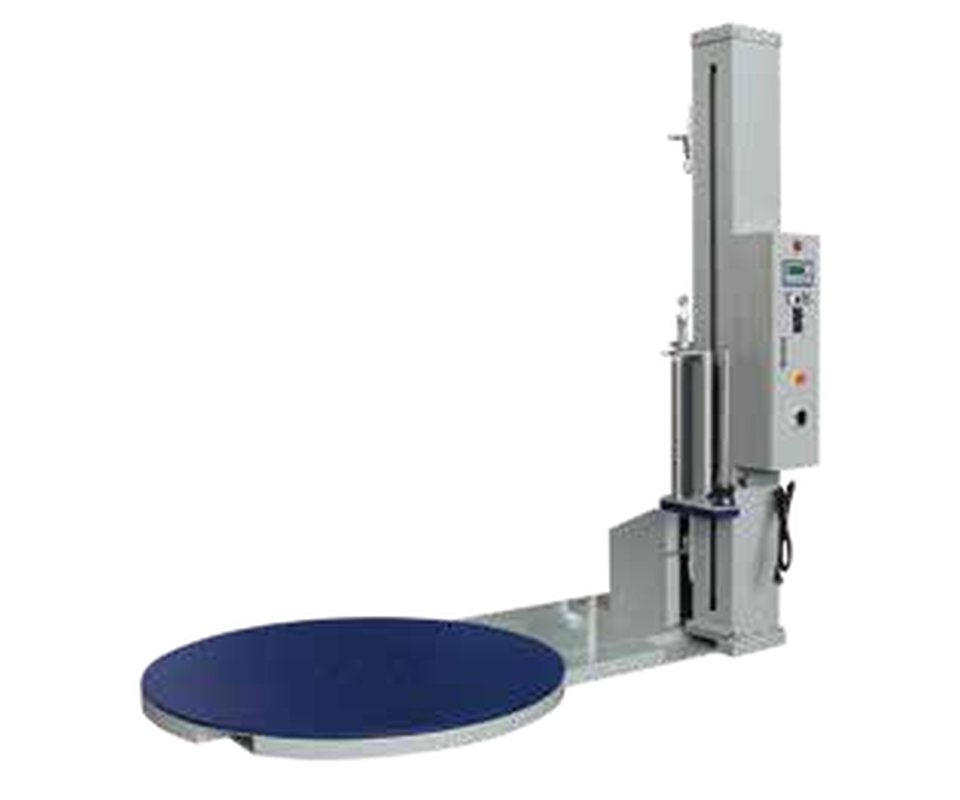

MH-FG-2000 Pre-Stretch Turntable Pallet Wrapper
Packaging line

MH-FG-2000 Pre-Stretch Turntable Pallet Wrapper

by Youngsun · Hangzhou, Zhejiang · MH-FG series

A turntable pallet stretch wrapper with powered pre-stretch, 2,000 kg capacity and a choice of turntable sizes and mast heights.

Key specs
Power supply
220V 50Hz
3 models in this family
MH-FG-2000MH-FG-1000AMH-FG-2000W
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Power1P AC220V 50Hz
Turntable speed0-10 rpm
Turntable diameter1,500 mm (optional 1,650 / 1,800 / 2,000 / 2,200)
Mast height2,400 mm (optional 2,000 / 2,700 / 3,000 / 3,200 / 3,400)
Capacity2,000 kg
Effective heightMast height minus 400 mm
FilmW <= 500 mm, OD <= 280 mm LLDPE stretch film
Machine size1,500 x 2,440 x 2,475 mm

As printed in the Youngsun catalog, page 48. Confirm final specs in your quote.

What it does well

  • 2,000 kg capacity
  • Many turntable and mast options

Applications

Pallet stretch wrapping

Industries

Food and beverageLogisticsPackaging
