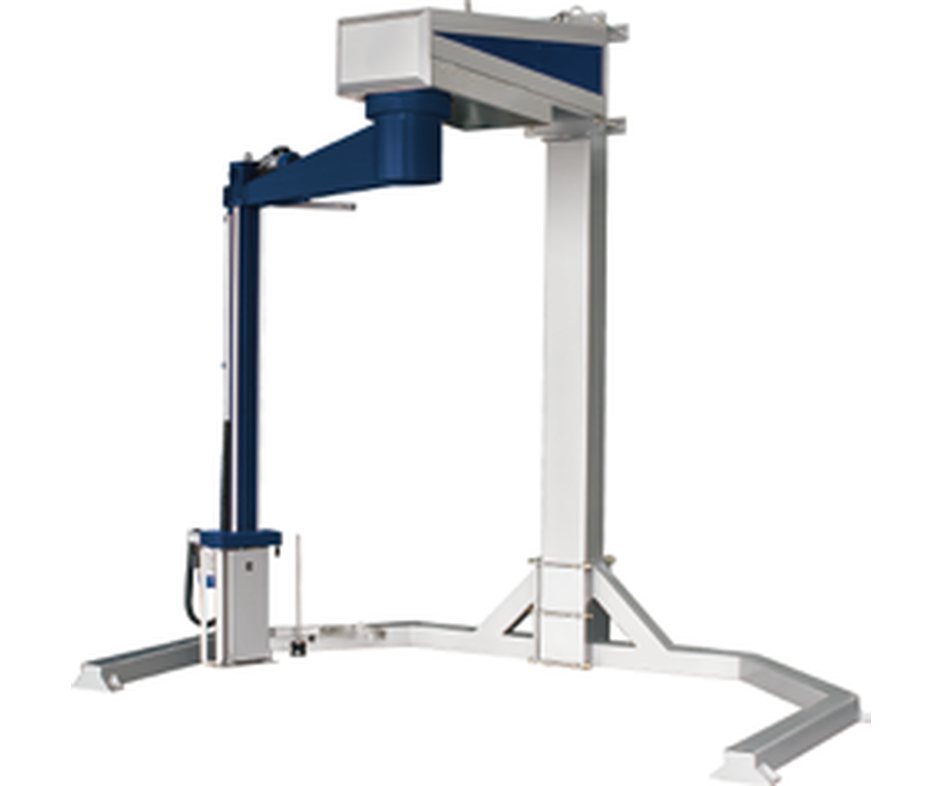

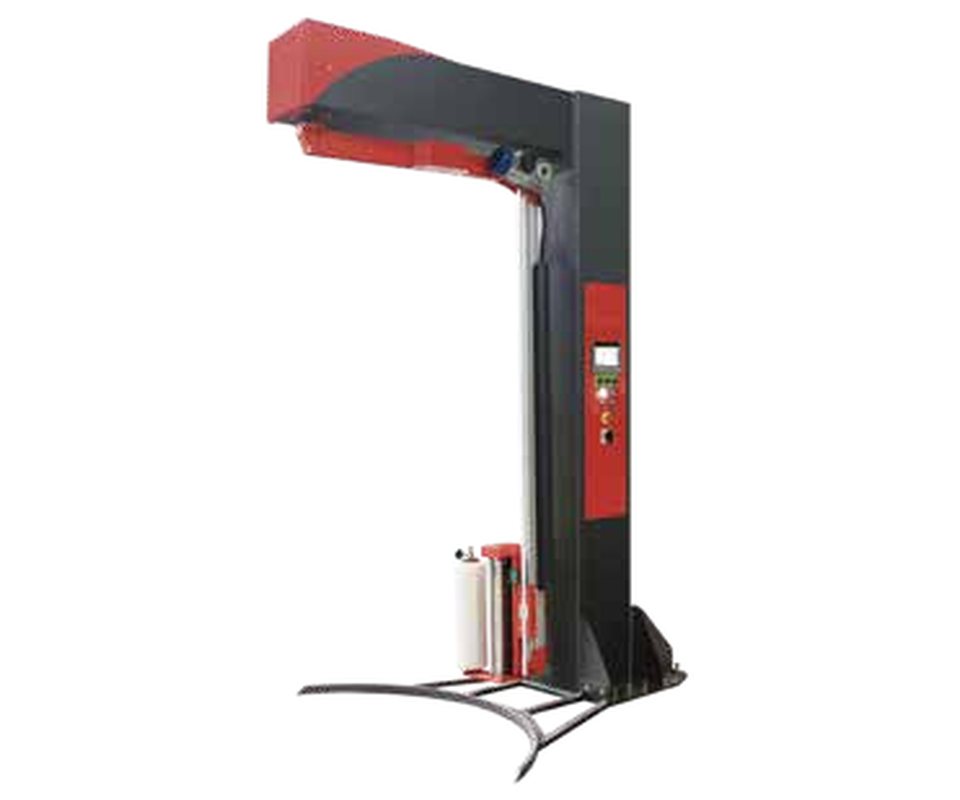

MH-FG-2300A Gantry Rotating-Arm Pallet Wrapper
by Youngsun · Hangzhou, Zhejiang · MH-FG series
A gantry wrapper with a rotating film arm that wraps stationary pallets, with a 1,700 mm rotation diameter.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Power | 3P AC380V 50Hz |
|---|---|
| Air pressure | 0.6-0.8 MPa |
| Rotating speed | 0-22 rpm |
| Rotating inner diameter | 1,700 mm |
| Mast height | 2,400 mm (optional to 3,400) |
| Noise | <= 75 dB (A) |
| Environment | Humidity <= 90%, temperature -10 to 40 C |
As printed in the Youngsun catalog, page 50. Confirm final specs in your quote.
What it does well
- Pallet stays still
- Wrapping speed up to 22 rpm
