Robots /Packaging lines /MH-FJ-1 Automatic Carton Sealer
MH-FJ-1 Automatic Carton Sealer
Packaging line

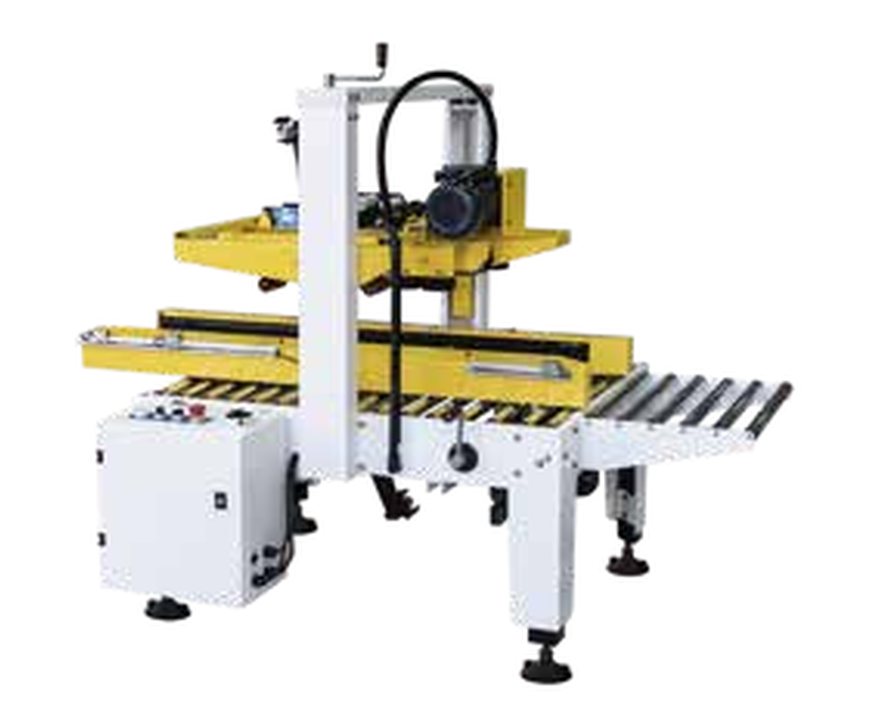

MH-FJ-1 Automatic Carton Sealer

by Youngsun · Hangzhou, Zhejiang · MH-FJ series

Tape-sealing machines that close the top and bottom of cartons on a belt at 20 m/min, in several widths and voltages.

Key specs
Speed
20 m/min
Power
0.6 kW
Power supply
220V 50Hz
6 models in this family
MH-FJ-1AMH-FJ-1AEMH-FJ-1AWMH-FJ-1AWEMH-FJ-1AWSMH-FJ-1D
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsMH-FJ-1A, 1AE, 1AW, 1AWE, 1AWS, 1D
PowerAC220V 50Hz 0.6 kW (1A); AC380V versions (1AE, 1AWE)
SealingKraft paper tape, BOPP tape
Tape width48-72 mm
Carton size (1A)L150-inf, W120-480, H120-480 mm
Conveyor speed20 m/min
Table height550-750 mm (feet), 650-850 mm (castors)
Overall size1,090 x 890 x H (table + 750) mm

As printed in the Youngsun catalog, page 37. Confirm final specs in your quote.

What it does well

  • Kraft or BOPP tape
  • Foot or castor stand

Applications

Carton sealing

Industries

Food and beverageLogisticsPackaging
