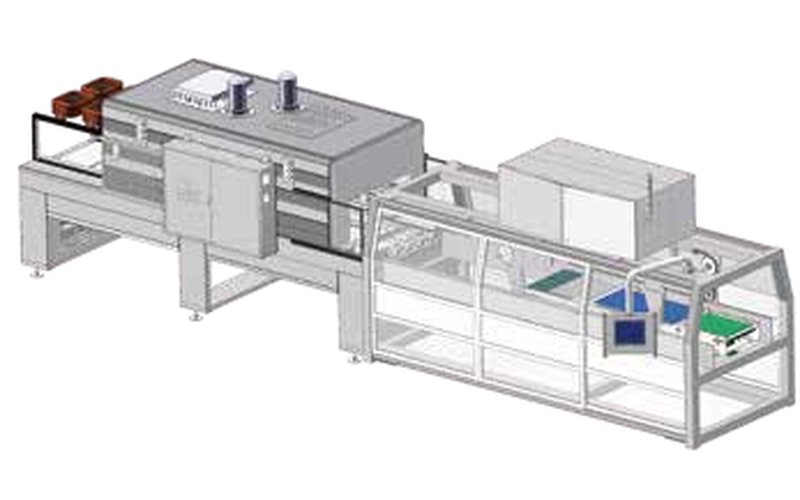

YS-ZB-6 Film Wrap-Around Packer
by Youngsun · Hangzhou, Zhejiang · YS-ZB-6 series
Tray and pad shrink-film wrap-around machines for bottles and cans, up to 45 packages per minute.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Model | YS-ZB-6I (ZX) wrap around carton machine |
|---|---|
| Power | 3P5wires AC380V +-10% 50Hz |
| Air pressure | 0.6-0.8 MPa |
| Machine size | 4,360 x 1,670 x 2,508 mm (customized) |
| Speed | 45 packages/min |
| Film | Transparent or white PE film, 0.06-0.1 mm |
| Working table height | 1,150 +-50 mm |
| Bottle volume (pad wrappers) | 0.25-5 L |
As printed in the Youngsun catalog, page 28. Confirm final specs in your quote.
What it does well
- Tray, pad and half-tray formats
- Single or two-lane versions
Applications
