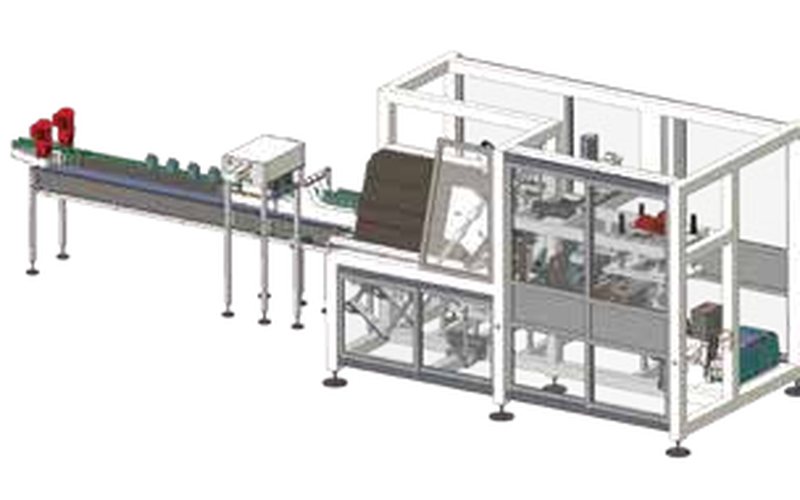

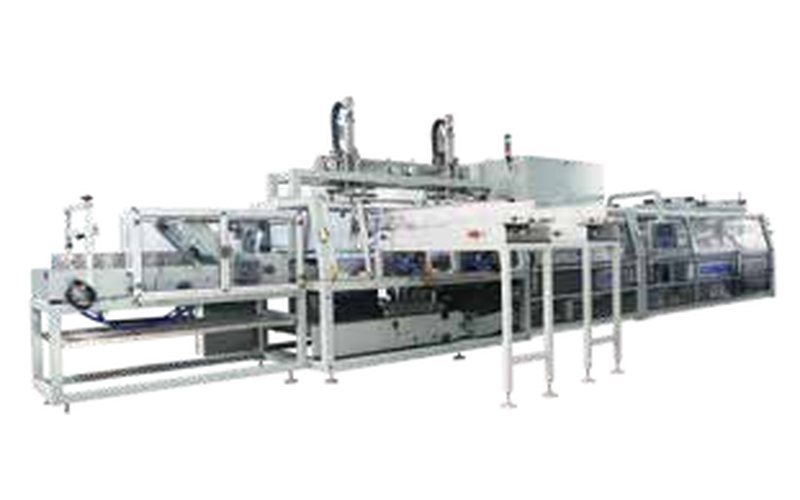

YS-ZX Wrap-Around Case Packer, 10-35 Series
by Youngsun · Hangzhou, Zhejiang · YS-ZX series
Wrap-around carton packers that group products and fold a carton blank around them, from 15 to 32 cartons per minute depending on the product.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | YS-ZX-10T, 15T, 20T (30T), 35S, 35TA, 35TB |
|---|---|
| YS-ZX-10T | 17 boxes/min, about 10 kW, 6,530 x 2,294 x 1,900 mm |
| YS-ZX-15T (side entry) | 15 boxes/min, about 11 kW, 9,138 x 2,499 x 2,655 mm |
| YS-ZX-20T (30T) (falling type) | 20 (23) boxes/min, about 10 (12.5) kW, 7,480 x 2,234 x 1,900 mm |
| YS-ZX-35S | 32 boxes/min, 3P 380V 50Hz, 9,241 x 3,726 x 2,562 mm |
| YS-ZX-35TA/35TB (straight type) | 26 boxes/min, about 19 (22) kW, 9,860 x 2,830 x 2,430 mm |
| Power supply | 380V +-10% 50Hz 3PH+PE |
| Air pressure | 0.6-0.8 MPa |
| Capacity note | Varies with product |
As printed in the Youngsun catalog, page 29. Confirm final specs in your quote.
What it does well
- Six models from 15 to 32 boxes/min
- Side entry, straight and falling types
