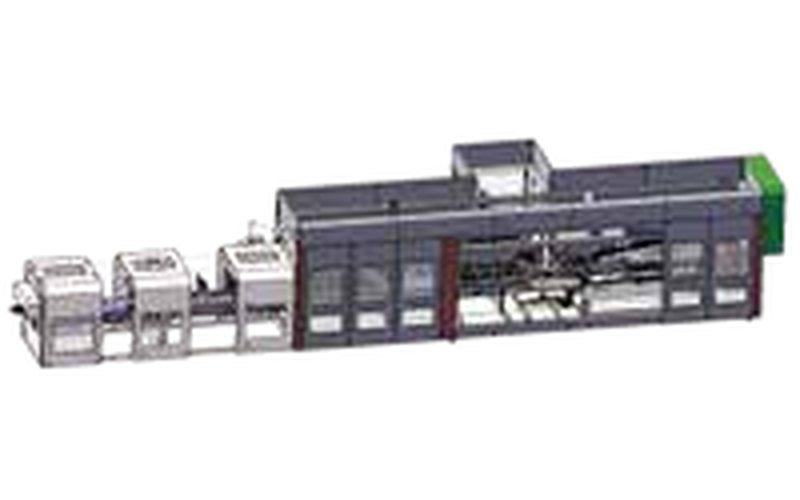

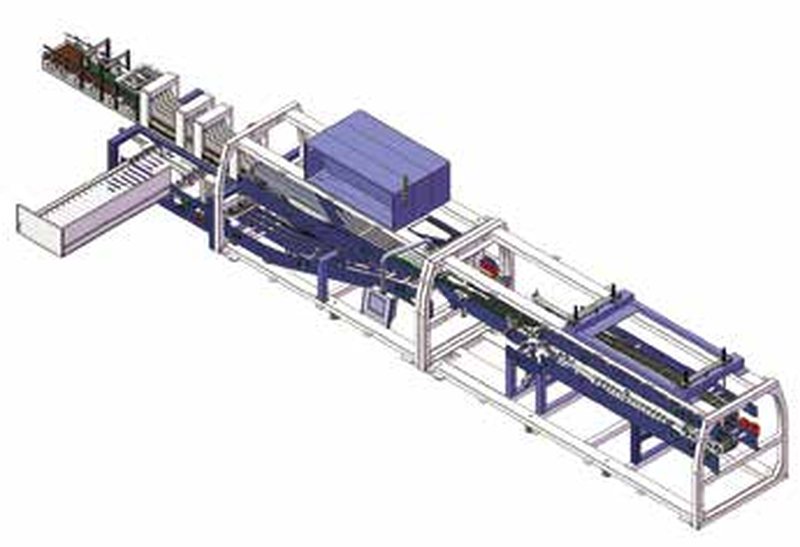

YS-ZX High-Speed Wrap-Around Case Packer, 50-70 Series
by Youngsun · Hangzhou, Zhejiang · YS-ZX series
High-speed wrap-around case packers for beverage lines, running from 50 up to 65 packages per minute.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Youngsun, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | YS-ZX-50T (GD), 60TA, 60TB, 70TA, 70TB |
|---|---|
| YS-ZX-50T (GD) | 50 boxes/min, 17,361 x 1,790 x 2,562 mm |
| YS-ZX-60TA / 60TB | 55 packages/min, 12,944 x 3,726 x 2,562 mm |
| YS-ZX-70TA / 70TB | 65 packages/min, 15,035 x 3,726 x 2,562 mm (14,539 for TB) |
| Power supply | 3P 380V +-10% 50Hz |
| Air pressure | 0.6-0.8 MPa |
| Capacity note | Varies with product |
As printed in the Youngsun catalog, page 30. Confirm final specs in your quote.
What it does well
- Up to 65 packages per minute
- Friction belt or suction blank feed
Applications
Industries
