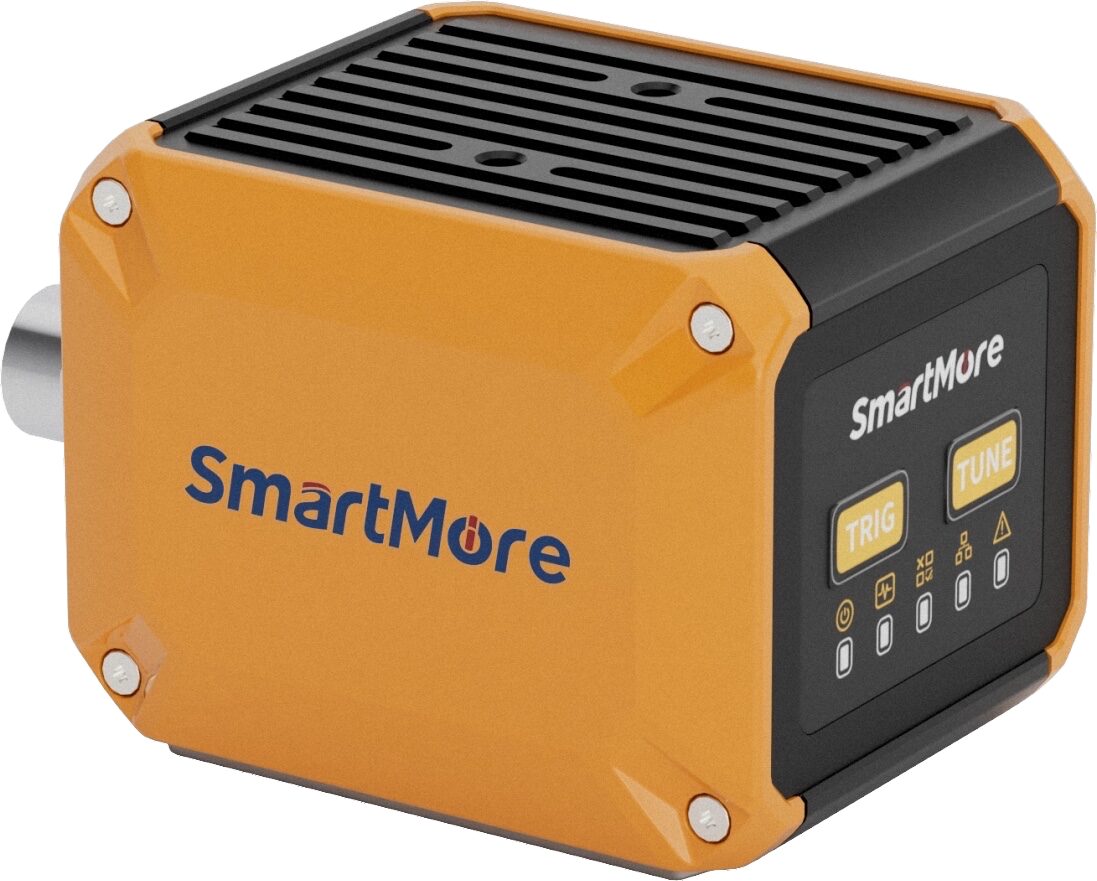

VS1000P 1 MP Industrial Code Reader

by SmartMore · Hong Kong · SMore ViScanner

A small-to-medium field industrial code reader with a deep-learning chip and a 1 MP sensor, reading from 40 mm out to 1000 mm with three lens options.

Key specs

Speed

60 fps

Weight

0.3 kg0.7 lb

Protection

IP67

Power supply

24 VDC

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1280 x 800 (1 MP)
Frame rate	60 fps
Image sensor	Black and white, global shutter
Exposure time	20 us to 1 s
Pixel size	3 um x 3 um
Sensor size	1/4 inch
1D codes	Code 39, Code 93, Code 128, EAN-8, EAN-13, Interleaved 2 of 5, UPC, Pharmacode
2D codes	Micro QR, QR, Data Matrix
Stacked code	PDF417
Focusing	Manual
Focal length	8 mm, 12 mm or 16 mm
Reading distance	40-1000 mm (8 mm); 50-1000 mm (12 mm); 100-1000 mm (16 mm)
Light source	Red or white, 4 independent channels, 16 lighting schemes, polarized options
Inputs	2 optocoupler-isolated, NPN and PNP
Outputs	3 optocoupler-isolated
Protocols	TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Fins, Serial
Interfaces	RS232, Ethernet
Power input	24 VDC
Power consumption	15 W
Dimensions	58 x 53.5 x 69 mm
Weight	About 300 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
