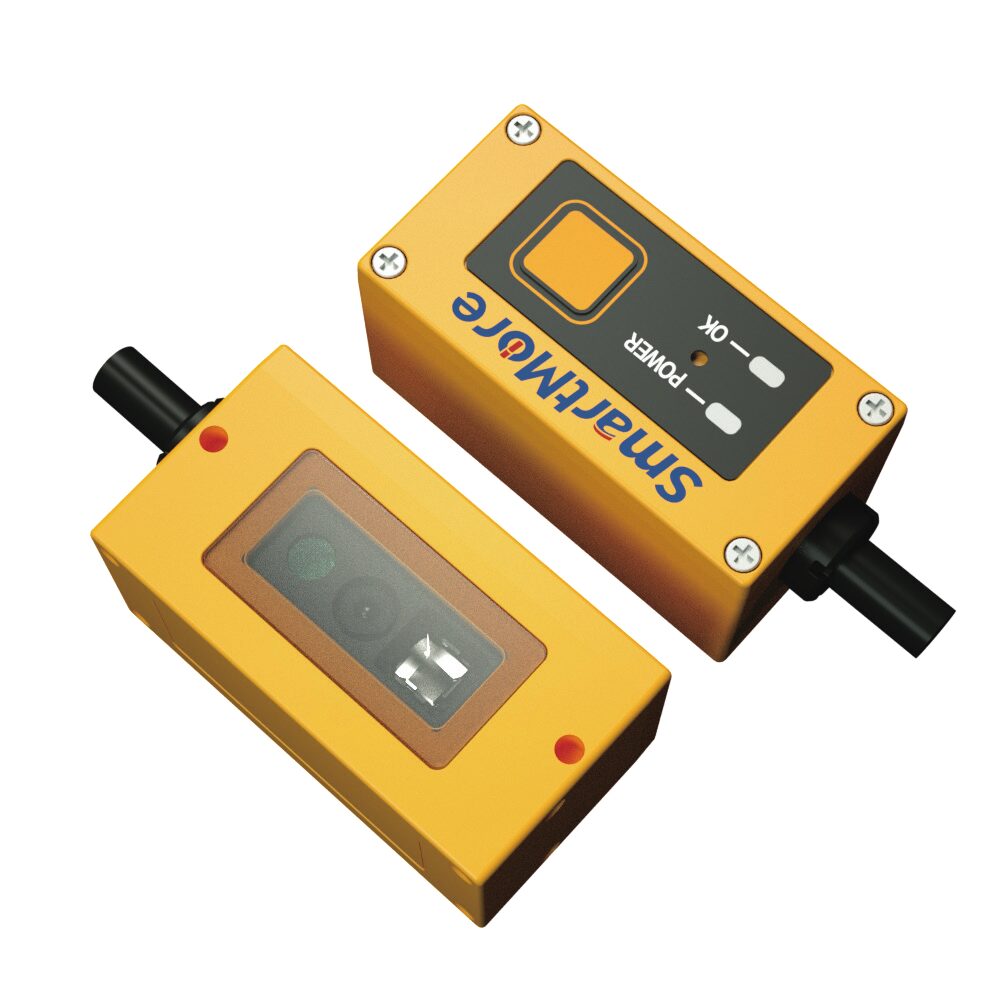

VS500max Ultra-Compact Smart Code Reader

by SmartMore · Hong Kong · SMore ViScanner

A sensor-sized AI code reader, about a quarter the size of a business card, for DPM, inkjet and paper-label codes in very tight spaces. Reads up to 30 codes in one image.

Key specs

Speed

60 fps

Weight

0.1 kg0.1 lb

Power supply

5 VDC (USB) / 24 VDC

3 models in this family

VS500M-14B-SR-UR (standard)VS500M-14B-NR-UR (close-range)VS500M-14B-HD-UR (high density)

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1288 x 1088 (1.4 MP)
Frame rate	60 fps
Image sensor	Black and white, global shutter
Pixel size	2.7 um x 2.7 um
Focusing	Fixed focus
Close-range (NR) series reading	Code 39 (5 mil) 40-120 mm; Code 128 (10 mil) 15-250 mm; EAN-13 (13 mil) 30-280 mm; QR (10 mil) 35-155 mm; QR (15 mil) 15-215 mm; QR (20 mil) 15-270 mm
Standard (SR) series reading	Code 39 (5 mil) 75-250 mm; Code 128 (3 mil) 80-150 mm; Code 128 (10 mil) 65-420 mm; QR (10 mil) 75-230 mm; QR (20 mil) 65-480 mm
High-density (HD) series reading	Code 39 (3 mil) 30-60 mm; Code 128 (10 mil) 40-122 mm; QR (5 mil) 30-80 mm; Data Matrix (5 mil) 35-74 mm
1D codes	Code 39, Code 93, Code 128, EAN-8, EAN-13, Interleaved 2 of 5, UPC, Pharmacode, Codabar
2D codes	QR, Data Matrix, Maxicode, Aztec, Micro QR, PDF417
Max codes per image	30
Light source	White
I/O	1 non-isolated input/output
Interfaces	USB, RS232, I/O
Power input	5 VDC (USB) / 24 VDC
Power consumption	1.25 W (at 5 VDC)
Dimensions	45 x 22.3 x 23.8 mm
Weight	About 67 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
