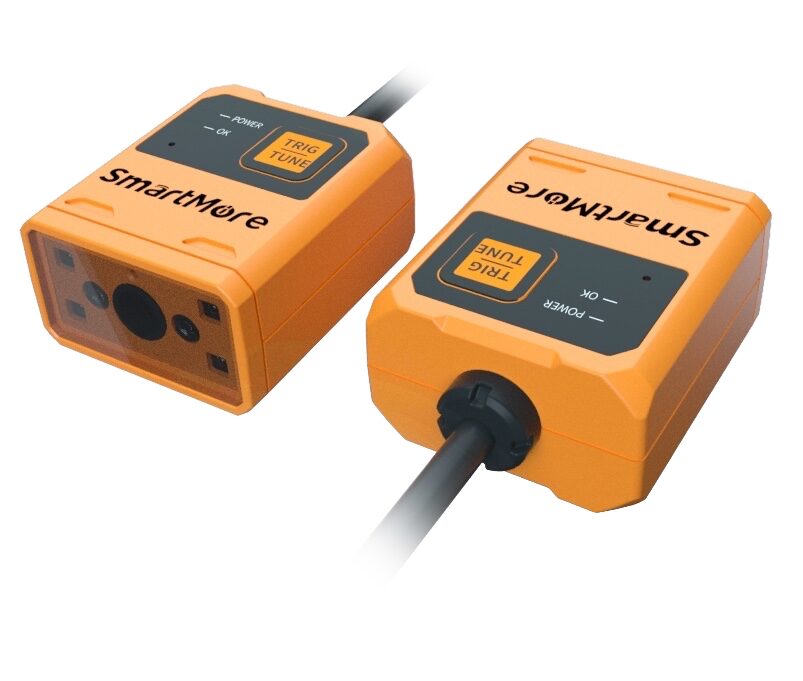

VS600P Compact Industrial Code Reader

by SmartMore · Hong Kong · SMore ViScanner

A compact industrial code reader with 1.4 MP imaging, AI deep-learning decoding and motion reading up to 2 m/s. Offline setup by scanning configuration codes.

Key specs

Speed

60 fps

Weight

0.1 kg0.2 lb

Protection

IP54

Power supply

24 VDC / USB 5 V

3 models in this family

VS600P-SR (standard)VS600P-NR (close-range)VS600P-HD (high density)

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1288 x 1088 (1.4 MP)
Frame rate	60 fps
Image sensor	Black and white, global shutter
Exposure time	20 us to 100000 us
Pixel size	2.7 um x 2.7 um
Focusing	Fixed focus
Standard (SR) series reading	Code 39 (5 mil) 85-220 mm; Code 128 (10 mil) 51-415 mm; QR (15 mil) 42-313 mm; Data Matrix (10 mil) 60-150 mm
Close-distance (NR) series reading	Code 39 (3 mil) 58-112 mm; Code 128 (10 mil) 30-205 mm; QR (10 mil) 30-167 mm; Data Matrix (5 mil) 55-80 mm
High-density (HD) series reading	Code 39 (3 mil) 30-60 mm; Code 128 (10 mil) 40-122 mm; QR (5 mil) 30-80 mm; Data Matrix (5 mil) 35-74 mm
1D codes	Code 39, Code 93, Code 128, EAN-8, EAN-13, Interleaved 2 of 5, UPCA, UPCE, Pharmacode, Codabar
2D codes	Micro QR, QR, Data Matrix, MaxiCode, Aztec
Stacked code	PDF417
Light source	Red or white, polarized option
I/O	2 non-isolated inputs, 2 non-isolated outputs
Protocols	TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Fins, Serial
Interfaces	RS232, RJ45, USB
Power input	24 VDC / USB 5 V
Power consumption	5 W
Dimensions	49 x 25 x 42.5 mm
Weight	Approx. 80 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP54
