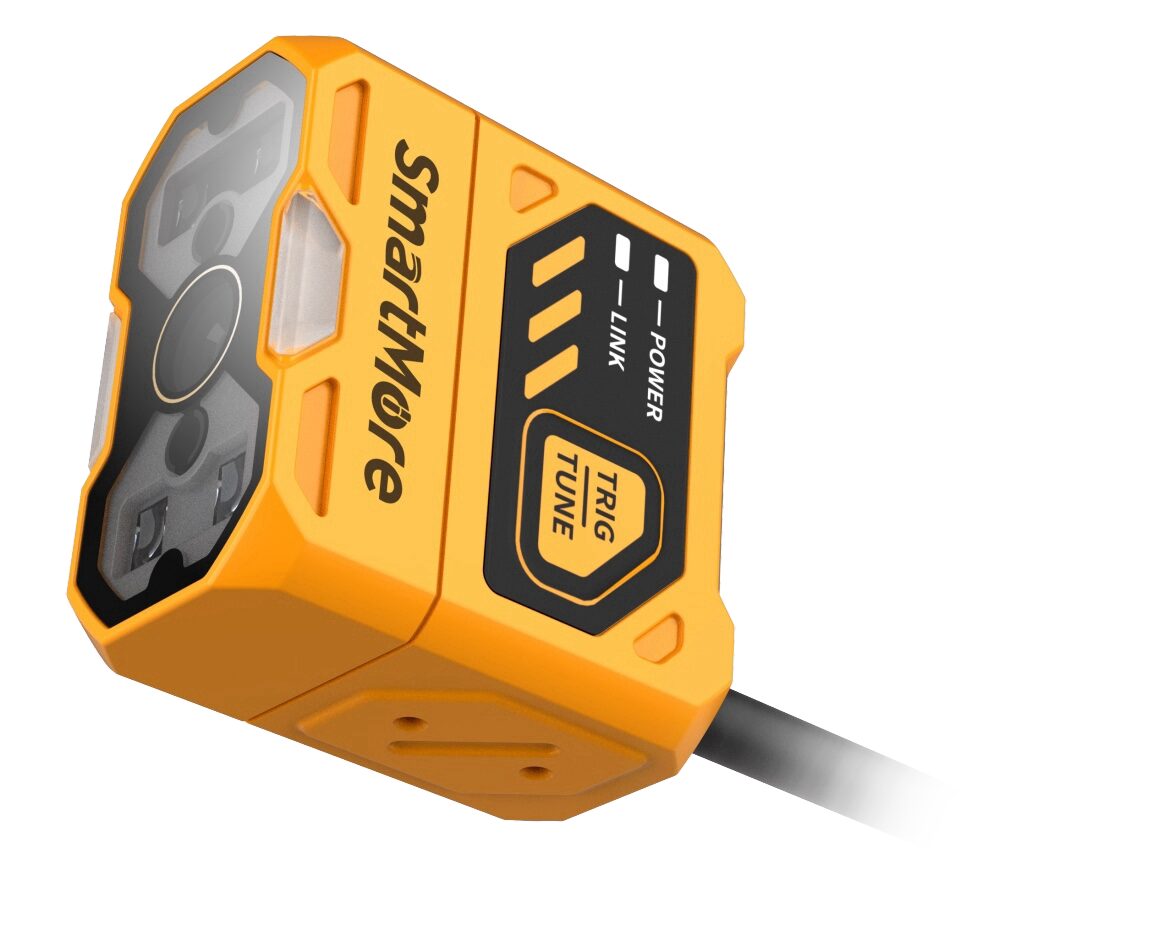

VS800P Manual-Focus Code Reader

by SmartMore · Hong Kong · SMore ViScanner

The fixed 6 mm manual-focus version of the VS800P ultra-compact AI code reader, a cost-effective option when the working distance is set once.

Key specs

Speed

60 fps

Weight

0.1 kg0.2 lb

Protection

IP67

Power supply

24 VDC

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1288 x 1088 (1.4 MP)
Frame rate	60 fps
Image sensor	Black and white, global shutter
Exposure time	20 us to 1 s
Pixel size	2.7 um x 2.7 um
Sensor size	1/4 inch
Focusing	Manual focus
Focal length	6 mm
Reading distance	30-300 mm
1D codes	Code 39, Code 93, Code 128, EAN-8, EAN-13, Interleaved 2 of 5, UPC, Pharmacode
2D codes	Micro QR, QR, Data Matrix
Stacked code	PDF417
Light source	Optional red or white, optional polarization
Inputs	2 optocoupler-isolated, NPN and PNP
Outputs	3 non-isolated
Protocols	TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Fins, Serial
Interfaces	RS232, Ethernet
Power input	24 VDC
Power consumption	5 W
Dimensions	47 x 25 x 43 mm
Weight	About 110 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
