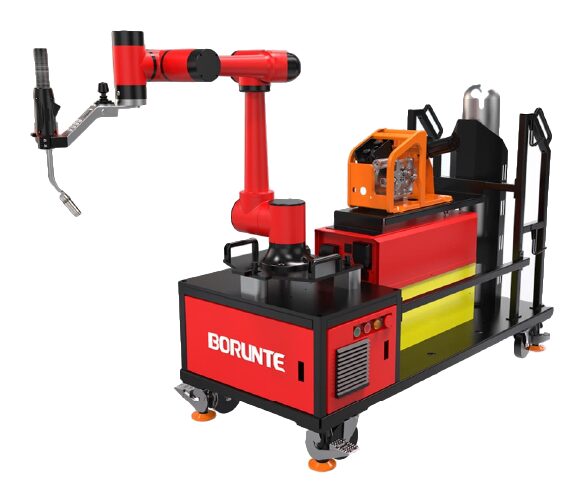

BRTHC Collaborative Welding Workstation
by BORUNTE · China · Welding workstation
Mobile welding workstation with a collaborative robot, a hand-guiding welding handle and a standard welding machine and gun. Two versions: 500A water-cooled and 350A air-cooled.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with BORUNTE, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | BRTHC100501A / BRTHC100502A |
|---|---|
| Max arm span | 1000 mm |
| Max load | 5 kg |
| Welding machine | 500A (100501A) / 350A (100502A) |
| Welding gun | 500A water-cooled (100501A) / 500A air-cooled (100502A) |
| Repeatability | ±0.05 mm |
As printed in the BORUNTE catalog, page 22. Confirm final specs in your quote.
What it does well
- Handle and universal casters for easy moving
- Magnetic robot base and 3 m cable
- Drag teaching with welding handle display and keys
- Gas cylinder and welder integrated, only power supply needed
Applications
