Robotic Laser Welding System Package
Welding cell

Robotic Laser Welding System Package

by Seagull Robot · Wuhu, Anhui · Welding packages

Complete robotic laser welding cell: 2000 W fiber laser, RB20A3-2080 robot, twin wire feeding, dual-swing welding head, vision sensor and weld tracking.

Key specs
Payload
20 kg44 lb
Reach
2,080 mm81.9 in
Repeatability
±0.04 mm±0.0016 in
Power
2 kW
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Seagull Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

LaserMFSC-2000C fiber laser
Output power2000 W (power regulation from 10%)
Central wavelength1080 nm typical

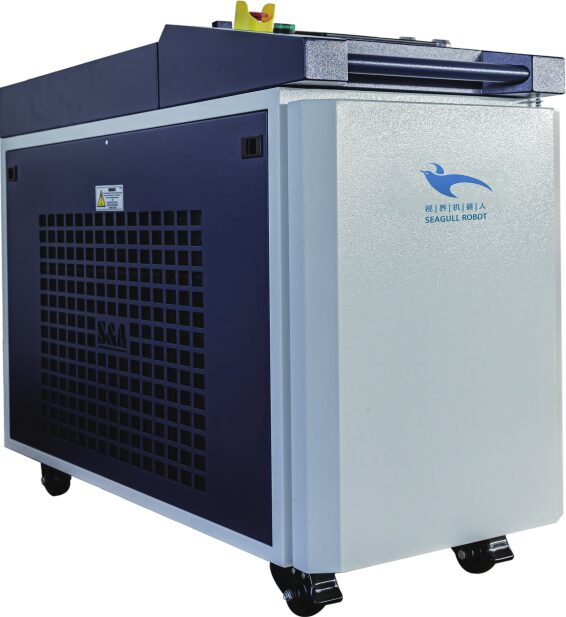

Water coolerCWFL-2000ANW12
Laser control systemRB08-GSK8
Industrial robotRB20A3-2080WZ
Robot control cabinetRB20-GSK8
Wire feedingTwin wire feeding
Laser welding headZY-WB3KW-S dual-swing, 3000 W max
Head focal lengthsCollimated 75 mm, focusing 200 mm
Head swing range / frequency0.1-5 mm / 0-300 Hz
Head cooling and weightWater-cooled, 2.5 kg
Vision sensorSJ-LT150-B-H01
Output modeStandard QBH (LOC)

As printed in the Seagull Robot catalog, page 4. Confirm final specs in your quote.

What it does well

  • Weld seam tracking by vision sensor
  • Low heat input and minimal distortion
  • Process software with swing, PWM and wire feed settings
  • Built-in monitoring camera

Applications

Stainless steel weldingCarbon steel weldingAluminum plate weldingHousehold radiatorsThermos container filter frames

Industries

Household appliancesNew energy vehiclesHardware processing
