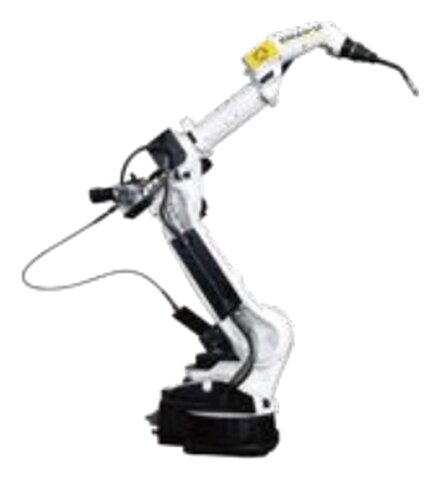

ARC6 Welding Robot
by CHAIFU Robot · Jinshan District, Shanghai · ARC6 series
6 kg arc welding robots in two reach classes, 1,440 mm and 2,008 mm.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | ARC6-140-6 / ARC6-208-6 |
|---|---|
| Structure | Vertical multi-joint, 6 axes |
| Max payload | 6 kg / 6 kg |
| Max reach | 1,440 mm / 2,008 mm |
| Repeatability | +/-0.05 mm / +/-0.05 mm |
| Robot weight | 150 kg / 280 kg |
| Power capacity | 3 kVA / 3.8 kVA |
| Mounting | Floor, wall or ceiling / Floor, wall or ceiling |
| Protection | IP65 / IP65 |
| Drive | AC servo motor |
| Operating temperature | 0-45 C |
| Humidity | Below 95% RH, no condensation |
As printed in the CHAIFU Robot catalog, page 3. Confirm final specs in your quote.
What it does well
- +/-0.05 mm repeatability
- IP65 protection
- Floor, wall or ceiling mounting
