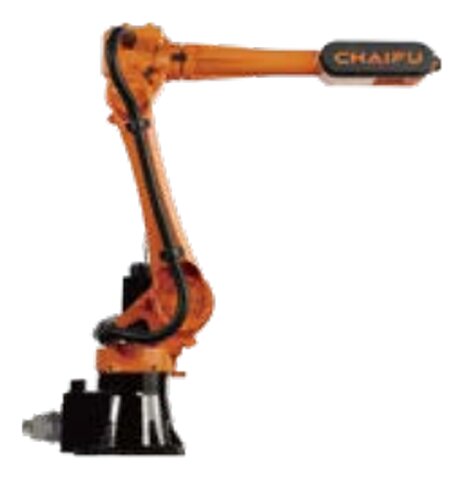

SF10-K Long-Reach 6-Axis Robot
Industrial robot

SF10-K Long-Reach 6-Axis Robot

by CHAIFU Robot · Jinshan District, Shanghai · SF series (long reach)

10 kg arms with extra long reach of 2,032 mm and 3,100 mm for wide work areas.

Key specs
Payload
10 kg22 lb
Reach
3,100 mm122 in
Axes
6
Repeatability
±0.05 mm±0.002 in
Weight
596 kg1,314 lb
Protection
IP65
2 models in this family
SF10-K2032SF10-K3100
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF10-K2032 / SF10-K3100
StructureVertical multi-joint, 6 axes
Max payload10 kg / 10 kg
Max reach2,032 mm / 3,100 mm
Repeatability+/-0.05 mm / +/-0.05 mm
Robot weight208 kg / 596 kg
Power capacity3.25 kVA / 4.5 kVA
MountingFloor, wall or ceiling / Floor, wall or ceiling
ProtectionIP65 / IP65
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 3. Confirm final specs in your quote.

What it does well

  • Reach up to 3,100 mm
  • IP65 protection
  • Floor, wall or ceiling mounting

Applications

HandlingLoading and unloading

Industries

Logistics and transportationMetal productsMechanical engineering
