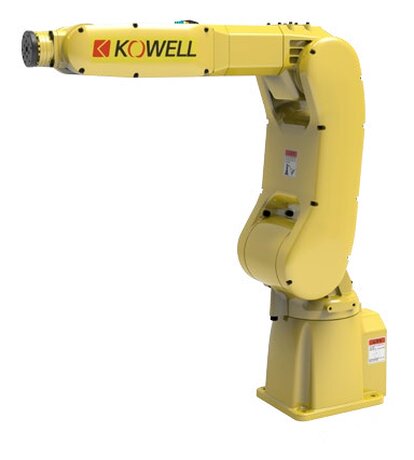

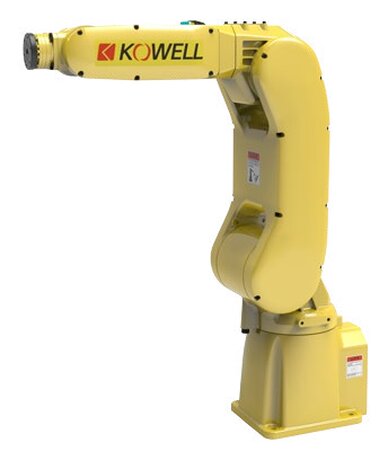

KW1005B-950 / KW1008B-830 / KW1010B-920 Desktop 6-Axis Robot
by KOWELL · Tai'an, Shandong · Small six axis desktop robot
Small 6-axis desktop robots, 5 to 10 kg payload, for light assembly and testing work.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KOWELL, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | KW1005B-950 / KW1008B-830 / KW1010B-920 |
|---|---|
| Type | 6-axis vertical joint |
| Payload | 5 kg / 8 kg / 10 kg |
| Working radius | 948 mm / 827 mm / 920 mm |
| Repeatability | +/-0.05 mm / +/-0.05 mm / +/-0.02 mm |
| Body weight | about 42 kg / about 42 kg / about 47 kg |
| Power capacity | 3.0 kVA / 3.0 kVA / 3.0 kVA |
| Protection level | Equivalent to IP65 / Equivalent to IP65 / Equivalent to IP67 |
| Installation | Floor / Floor / Floor, bracket or inverted |
| Operating environment | 0-45 C, 20-80% RH, no condensation |
As printed in the KOWELL catalog, page 4. Confirm final specs in your quote.
What it does well
- Payload 5 to 10 kg
- Equivalent to IP65 / IP67 on small models
- +/-0.02 mm on KW1010B-920
Applications
More from KOWELL
KW1010B to KW1020B-1700 Universal 6-Axis Robot (10-20 kg)
4 sizesIndustrial robot · KOWELL
20 kg44 lb payload · 1,700 mm66.9 in reach · 6-axis

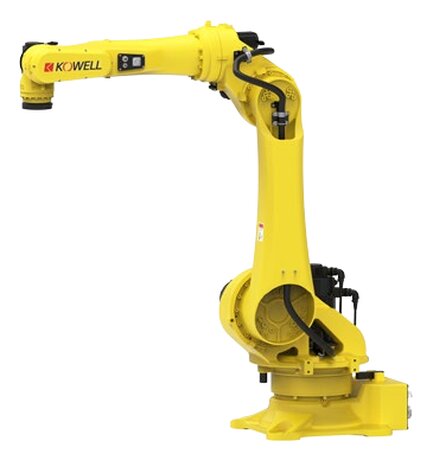

KW1020B-2000 / KW1030B / KW1035B Universal 6-Axis Robot (20-35 kg)
3 sizesIndustrial robot · KOWELL
35 kg77 lb payload · 1,850 mm72.8 in reach · 6-axis

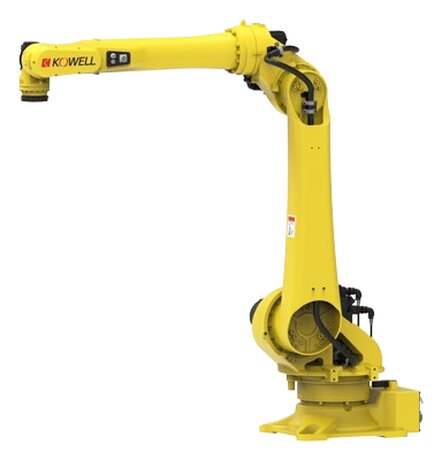

KW1050B to KW1080B Universal 6-Axis Robot (50-80 kg)
4 sizesIndustrial robot · KOWELL
80 kg176 lb payload · 2,700 mm106.3 in reach · 6-axis

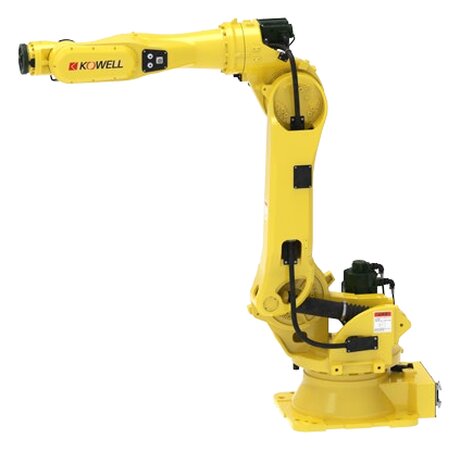

KW1130B to KW1170B Heavy-Duty 6-Axis Robot (130-170 kg)
3 sizesIndustrial robot · KOWELL
170 kg375 lb payload · 2,700 mm106.3 in reach · 6-axis

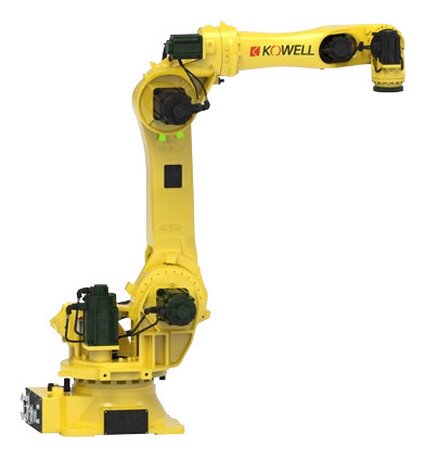

KW1220B to KW1280B Heavy-Duty 6-Axis Robot (220-280 kg)
