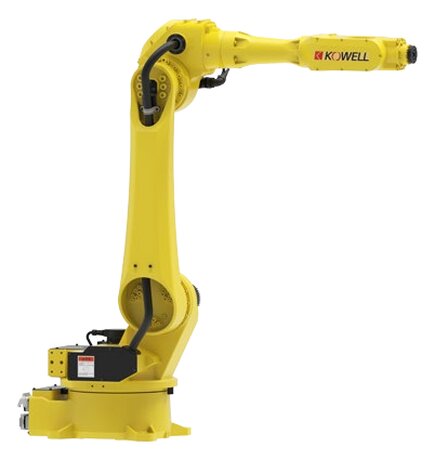

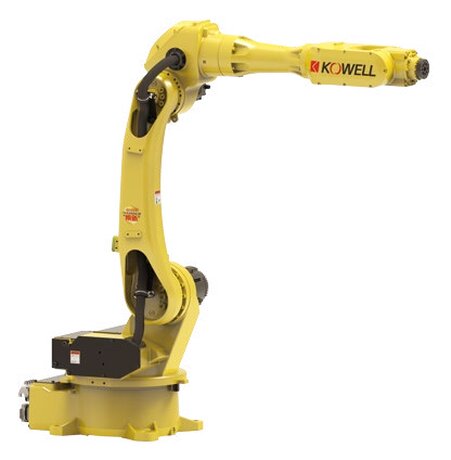

KW1010B to KW1020B-1700 Universal 6-Axis Robot (10-20 kg)
by KOWELL · Tai'an, Shandong · Universal six axis robot
Universal 6-axis arms for 10 to 20 kg loads, reach 1,440 to 1,700 mm.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KOWELL, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | KW1010B-1440 / KW1012B-1500 / KW1015B-1700 / KW1020B-1700 |
|---|---|
| Type | 6-axis vertical joint |
| Payload | 10 kg / 12 kg / 15 kg / 20 kg |
| Working radius | 1,440 mm / 1,500 mm / 1,700 mm / 1,700 mm |
| Repeatability | +/-0.05 mm / +/-0.05 mm / +/-0.05 mm / +/-0.05 mm |
| Body weight | about 177 kg / about 160 kg / about 210 kg / about 200 kg |
| Power capacity | 2.0 kVA / 3.0 kVA / 2.0 kVA / 2.0 kVA |
| Protection level | Equivalent to IP54 / Equivalent to IP54 / Equivalent to IP54 / Equivalent to IP54 |
| Installation | Floor / Floor / Floor / Floor |
| Operating environment | 0-45 C, 20-80% RH, no condensation |
As printed in the KOWELL catalog, page 4. Confirm final specs in your quote.
What it does well
- Payload 10 to 20 kg
- Reach up to 1,700 mm
- +/-0.05 mm repeatability
Applications
