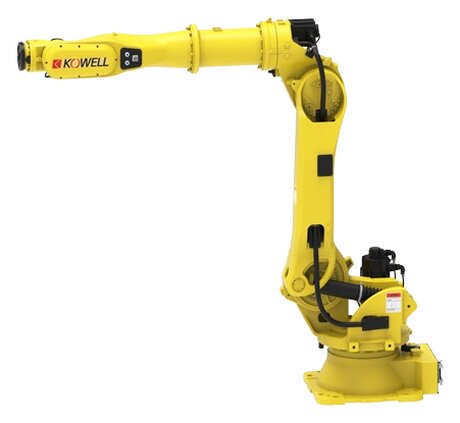

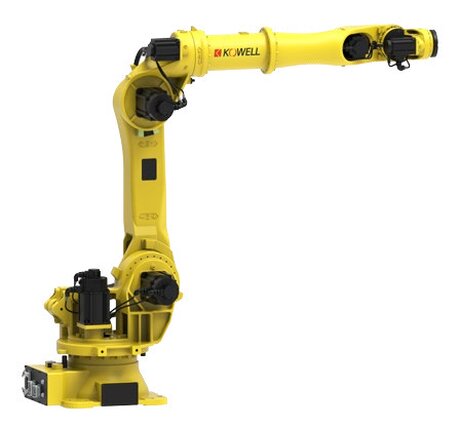

KW1130B to KW1170B Heavy-Duty 6-Axis Robot (130-170 kg)
by KOWELL · Tai'an, Shandong · Six axis heavy-duty robot
Heavy-duty 6-axis arms for 130 to 170 kg loads, reach up to 3,200 mm.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KOWELL, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | KW1130B-3200 / KW1160B-3200 / KW1170B-2700 |
|---|---|
| Type | 6-axis vertical joint |
| Payload | 130 kg / 160 kg / 170 kg |
| Working radius | 3,200 mm / 3,200 mm / 2,700 mm |
| Repeatability | +/-0.06 mm / +/-0.06 mm / +/-0.06 mm |
| Body weight | about 1,170 kg / about 1,170 kg / about 1,140 kg |
| Power capacity | 11 kVA / 11 kVA / 11 kVA |
| Protection level | Equivalent to IP54 / Equivalent to IP54 / Equivalent to IP54 |
| Installation | Floor / Floor / Floor |
| Operating environment | 0-45 C, 20-80% RH, no condensation |
As printed in the KOWELL catalog, page 6. Confirm final specs in your quote.
What it does well
- Payload 130 to 170 kg
- Reach up to 3,200 mm
- +/-0.06 mm repeatability
Applications
