Robots /Industrial robots /SF7 / SF8 Compact 6-Axis Robot

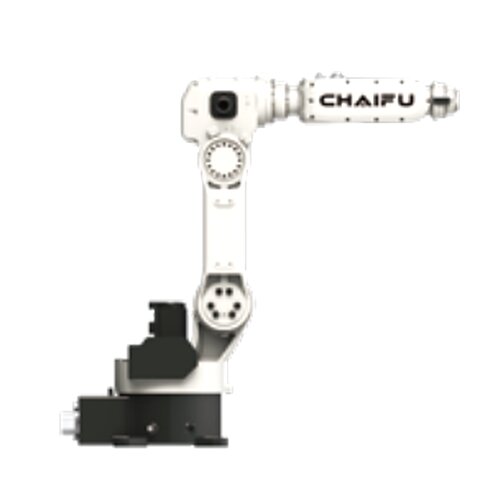

SF7 / SF8 Compact 6-Axis Robot
Industrial robot

SF7 / SF8 Compact 6-Axis Robot

by CHAIFU Robot · Jinshan District, Shanghai · SF series (small payload)

Light 6-axis arm for small parts handling and assembly cells. Two models, 7 kg and 8 kg payload.

Key specs
Payload
7 kg15 lb
Reach
738 mm29 in
Axes
6
Repeatability
±0.03 mm±0.0012 in
Weight
48 kg106 lb
Protection
IP65
2 models in this family
SF7-K759SF8-K950
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF7-K759 / SF8-K950
StructureVertical multi-joint, 6 axes
Max payload7 kg / 8 kg
Max reach737.5 mm / 956 mm
Repeatability+/-0.03 mm / +/-0.03 mm
Robot weight48 kg / 66 kg
Power capacity1.5 kVA / 1.5 kVA
MountingFloor / Floor, wall or ceiling
ProtectionIP65 / IP65
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 3. Confirm final specs in your quote.

What it does well

  • +/-0.03 mm repeatability
  • IP65 protection
  • AC servo drive

Applications

Parts handlingAssembly

Industries

ElectronicsMetal products
