Robots /Industrial robots /SF10 / SF6 General 6-Axis Robot

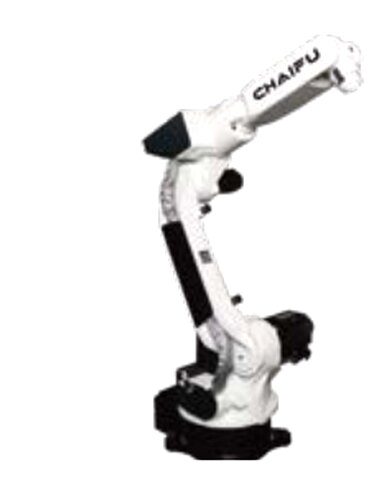

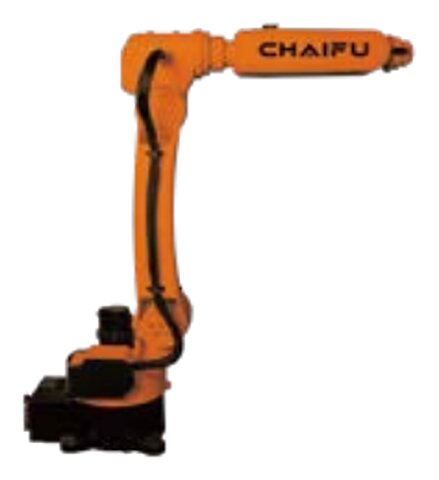

SF10 / SF6 General 6-Axis Robot
Industrial robot

SF10 / SF6 General 6-Axis Robot

by CHAIFU Robot · Jinshan District, Shanghai · SF series (6-10 kg)

Three 6 to 10 kg 6-axis arms with 1,200 to 1,651 mm reach for general handling.

Key specs
Payload
10 kg22 lb
Reach
1,651 mm65 in
Axes
6
Repeatability
±0.05 mm±0.002 in
Weight
196 kg432 lb
Protection
IP65
3 models in this family
SF10-C1450SF6-C1200SF10-C1650
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF10-C1450 / SF6-C1200 / SF10-C1650
StructureVertical multi-joint, 6 axes
Max payload10 kg / 6 kg / 10 kg
Max reach1,450 mm / 1,200 mm / 1,651 mm
Repeatability+/-0.08 mm / +/-0.05 mm / +/-0.05 mm
Robot weight160 kg / 72 kg / 196 kg
Power capacity3.8 kVA / 1.5 kVA / 2.5 kVA
MountingFloor, wall or ceiling / Floor, wall or ceiling / Floor, wall or ceiling
ProtectionIP65 / IP65 / IP65
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 3. Confirm final specs in your quote.

What it does well

  • Floor, wall or ceiling mounting
  • IP65 protection
  • AC servo drive

Applications

HandlingLoading and unloading

Industries

ElectronicsMetal products
