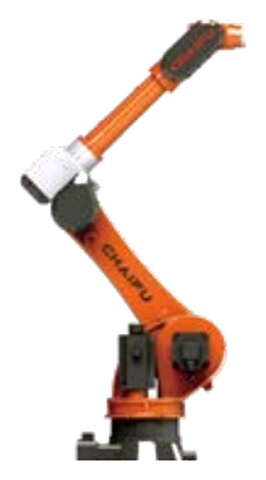

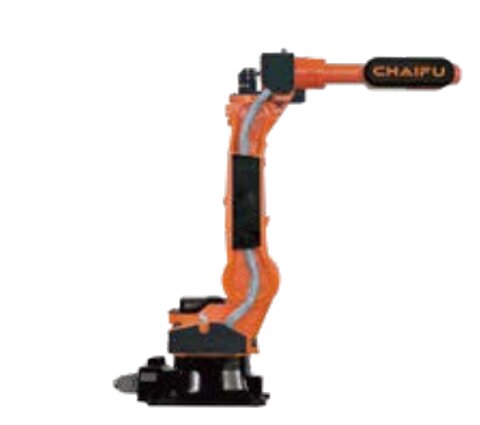

SF30 / SF50 / SF80 6-Axis Robot
Industrial robot

SF30 / SF50 / SF80 6-Axis Robot

by CHAIFU Robot · Jinshan District, Shanghai · SF series (30-80 kg)

Medium payload 6-axis arms from 30 kg to 80 kg with reach up to 2,600 mm.

Key specs
Payload
80 kg176 lb
Reach
2,600 mm102.4 in
Axes
6
Repeatability
±0.06 mm±0.0024 in
Protection
IP65
3 models in this family
SF30-C1850SF50-C2185SF80-C2600
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF30-C1850 / SF50-C2185 / SF80-C2600
StructureVertical multi-joint, 6 axes
Max payload30 kg / 50 kg / 80 kg
Max reach1,850 mm / 2,185 mm / 2,600 mm
Repeatability+/-0.06 mm / +/-0.06 mm / +/-0.06 mm
ProtectionIP65 / IP65 / IP65
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 4. Confirm final specs in your quote.

What it does well

  • +/-0.06 mm repeatability
  • IP65 protection

Applications

HandlingLoading and unloading

Industries

Logistics and transportationMetal productsMechanical engineering
