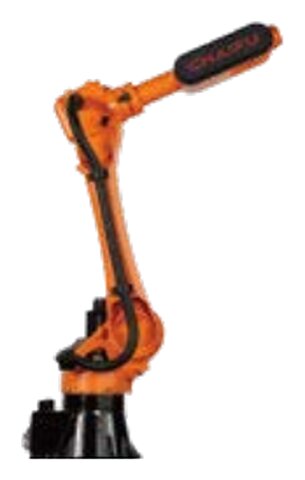

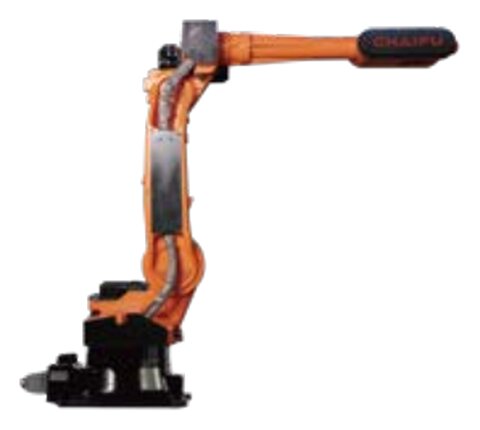

SF20 / SF25 6-Axis Robot
Industrial robot

SF20 / SF25 6-Axis Robot

by CHAIFU Robot · Jinshan District, Shanghai · SF series (20-25 kg)

Four 20 to 25 kg 6-axis arms for machine tending, handling and packing cells.

Key specs
Payload
25 kg55 lb
Reach
1,887 mm74.3 in
Axes
6
Repeatability
±0.06 mm±0.0024 in
Weight
293 kg646 lb
Protection
IP65
4 models in this family
SF20-K1735SF20-C2150SF25-C1830SF25-C1887
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF20-K1735 / SF20-C2150 / SF25-C1830 / SF25-C1887
StructureVertical multi-joint, 6 axes
Max payload20 kg / 20 kg / 25 kg / 25 kg
Max reach1,735 mm / 2,150 mm / 1,830 mm / 1,887 mm
Repeatability+/-0.05 mm / +/-0.06 mm / +/-0.06 mm / +/-0.06 mm
Robot weight206 kg / 246 kg / 227 kg / 293 kg
Power capacity3.25 kVA / 3.8 kVA / 4 kVA / 8.5 kVA
MountingFloor, wall or ceiling / Floor, wall or ceiling / Floor, wall or ceiling / Floor, wall or ceiling
ProtectionIP65 / IP65 / IP65 / IP65
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 3. Confirm final specs in your quote.

What it does well

  • 20 to 25 kg payload
  • IP65 protection
  • Floor, wall or ceiling mounting

Applications

HandlingLoading and unloading

Industries

ElectronicsMetal productsMechanical engineering
