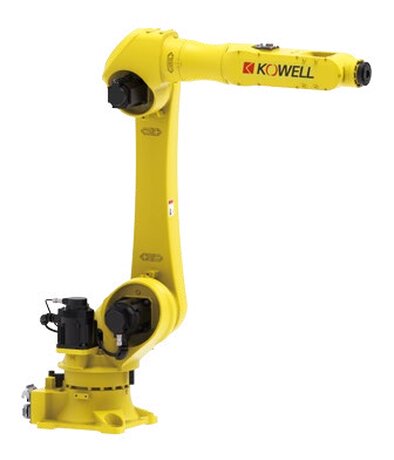

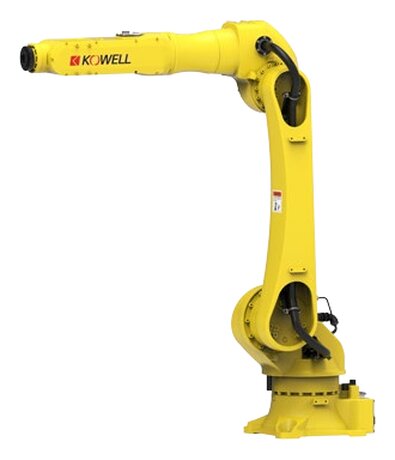

KW1020B-2000 / KW1030B / KW1035B Universal 6-Axis Robot (20-35 kg)
by KOWELL · Tai'an, Shandong · Universal six axis robot
Universal 6-axis arms for 20 to 35 kg loads, reach up to 2,000 mm.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KOWELL, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | KW1020B-2000 / KW1030B-1850 / KW1035B-1850 |
|---|---|
| Type | 6-axis vertical joint |
| Payload | 20 kg / 30 kg / 35 kg |
| Working radius | 2,000 mm / 1,850 mm / 1,850 mm |
| Repeatability | +/-0.05 mm / +/-0.05 mm / +/-0.05 mm |
| Body weight | about 210 kg / about 210 kg / about 210 kg |
| Power capacity | 3.0 kVA / 3.0 kVA / 3.0 kVA |
| Protection level | Equivalent to IP54 / Equivalent to IP54 / Equivalent to IP54 |
| Installation | Floor / Floor / Floor |
| Operating environment | 0-45 C, 20-80% RH, no condensation |
As printed in the KOWELL catalog, page 5. Confirm final specs in your quote.
What it does well
- Payload 20 to 35 kg
- +/-0.05 mm repeatability
Applications
