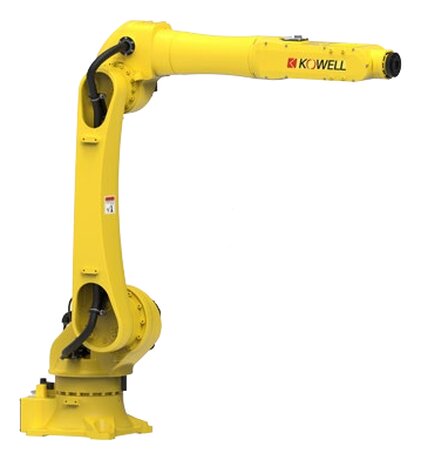

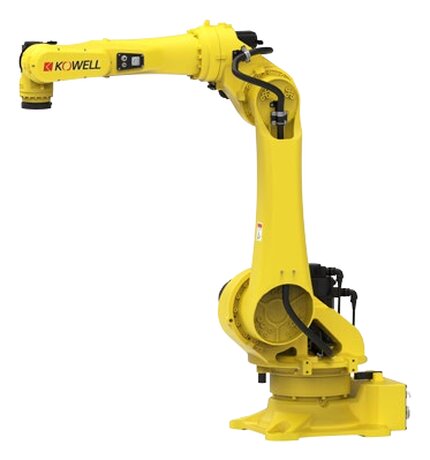

KW1050B to KW1080B Universal 6-Axis Robot (50-80 kg)
by KOWELL · Tai'an, Shandong · Universal six axis robot
Universal 6-axis arms for 50 to 80 kg loads, reach up to 2,700 mm.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KOWELL, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | KW1050B-2100 / KW1070B-2100 / KW1080B-2200 / KW1080B-2700 |
|---|---|
| Type | 6-axis vertical joint |
| Payload | 50 kg / 70 kg / 80 kg / 80 kg |
| Working radius | 2,100 mm / 2,100 mm / 2,200 mm / 2,700 mm |
| Repeatability | +/-0.05 mm / +/-0.05 mm / +/-0.05 mm / +/-0.05 mm |
| Body weight | about 540 kg / about 540 kg / about 540 kg / about 560 kg |
| Power capacity | 5.0 kVA / 5.0 kVA / 5.0 kVA / 5.0 kVA |
| Protection level | Equivalent to IP54 / Equivalent to IP54 / Equivalent to IP54 / Equivalent to IP54 |
| Installation | Floor / Floor / Floor / Floor |
| Operating environment | 0-45 C, 20-80% RH, no condensation |
As printed in the KOWELL catalog, page 5. Confirm final specs in your quote.
What it does well
- Payload 50 to 80 kg
- Reach up to 2,700 mm
- +/-0.05 mm repeatability
