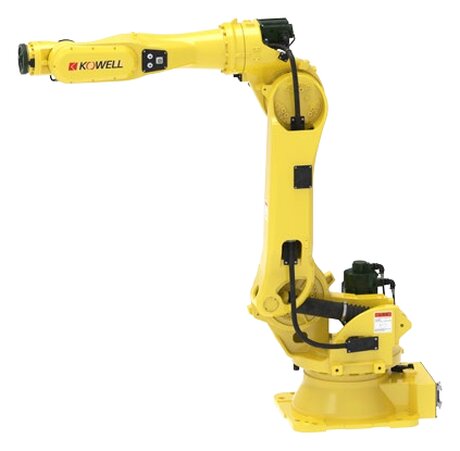

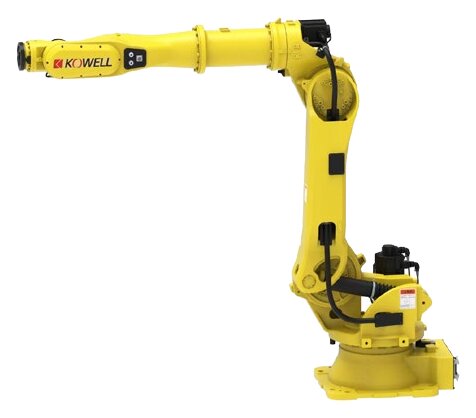

KW1220B to KW1280B Heavy-Duty 6-Axis Robot (220-280 kg)
by KOWELL · Tai'an, Shandong · Six axis heavy-duty robot
Heavy-duty 6-axis arms for 220 to 280 kg loads, the top of the 6-axis range.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KOWELL, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | KW1220B-2700 / KW1220B-3200 / KW1280B-2700 |
|---|---|
| Type | 6-axis vertical joint |
| Payload | 220 kg / 220 kg / 280 kg |
| Working radius | 2,700 mm / 3,200 mm / 2,700 mm |
| Repeatability | +/-0.06 mm / +/-0.06 mm / +/-0.06 mm |
| Body weight | about 1,140 kg / about 1,170 kg / about 1,140 kg |
| Power capacity | 11 kVA / 11 kVA / 11 kVA |
| Protection level | Equivalent to IP54 / Equivalent to IP54 / Equivalent to IP54 |
| Installation | Floor / Floor / Floor |
| Operating environment | 0-45 C, 20-80% RH, no condensation |
As printed in the KOWELL catalog, page 6. Confirm final specs in your quote.
What it does well
- Payload 220 to 280 kg
- +/-0.06 mm repeatability
Applications
