TIG Robotic Welding System Package

by Seagull Robot · Wuhu, Anhui · Welding packages

Robot TIG welding cell with WSM-400 pulsed DC TIG welder, water-cooled torch, vision sensor and single or double wire feeder options.

Key specs

Payload

20 kg44 lb

Reach

2,080 mm81.9 in

Repeatability

±0.04 mm±0.0016 in

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Seagull Robot, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

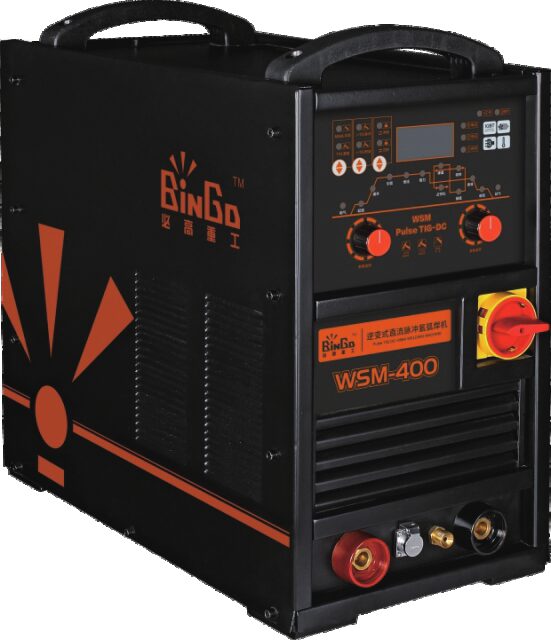

TIG welding machine	WSM-400R inverter DC pulsed TIG
Robotic welding torch	AL-400P water-cooled
Torch anti-collision device	ARS01
Industrial robot	RB20A3-2080WZ
Robot base height	350 / 550 / 750 mm
Robot control cabinet	RB20-GSK8
Vision sensor	SJ-LT150-B-H01
Wire feeder options	Single wire SJ-LT150-B-H01; double wire SJ-LT170-B-H01
Control modes	Two-step and four-step
Arc initiation	High-frequency or lift-arc

As printed in the Seagull Robot catalog, page 7. Confirm final specs in your quote.

What it does well

Pre-set current ramp, pulse frequency, duty cycle and gas times
Water shortage protection for the torch
Aesthetic weld shape
Single or double wire feeding

Applications

Aluminum alloy faucet pulse weldingRange hood cover TIG wire-filled weldingDual-wire TIG butt weldingMold steel TIG wire-filled additive layer welding
