MIG/MAG Robotic Welding System Package

by Seagull Robot · Wuhu, Anhui · Welding packages

Robot MIG/MAG welding cell with NBC-350RL inverter welder, robotic torch, RB20A3-2080 robot, vision sensor and weld tracking. Low-spatter mode for 1 to 3 mm carbon steel.

Key specs

Payload

20 kg44 lb

Reach

2,080 mm81.9 in

Repeatability

±0.04 mm±0.0016 in

Weight

55 kg121 lb

Power

14 kW

Protection

IP23

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Seagull Robot, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

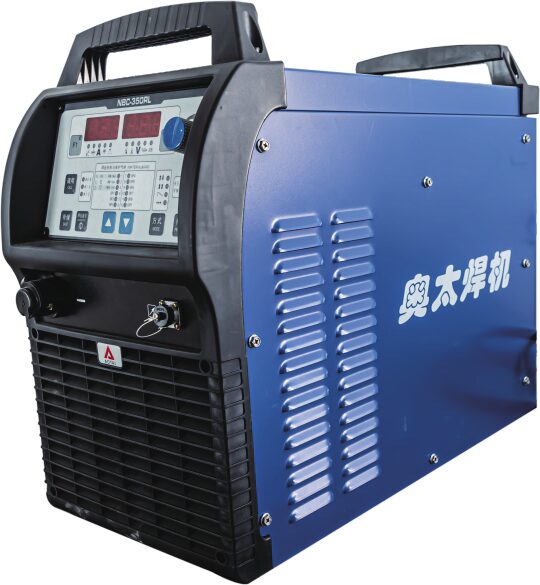

Welding machine	NBC-350RL (MAG)
Robotic welding torch	TRM351-P45L1
Anti-collision device	TRM313-01-N6
Industrial robot	RB20A3-2080WZ
Robot base height	350 / 550 / 750 mm
Robot control cabinet	RB20-GSK8
Vision sensor	SJ-LT150-B-H01
Rated input voltage/frequency	Three-phase 380V ±10%, 50 Hz
Rated input capacity	14 kVA
Rated input current	21 A
Rated output voltage	31.5 V
Rated duty cycle	60%
Open-circuit voltage	96 V
Output current/voltage range	60/17 to 350/31.5 A/V
Electrode wire diameter	0.8 / 1.0 / 1.2 mm
Wire feeding	Push feeding
Gas flow rate	15-20 L/min
Torch cooling	Air-cooled
Enclosure protection	IP23
Insulation grade	H
Machine dimensions	66x32x56 cm
Machine weight	55 kg
