Robots /Industrial robots /BRTIRSE2013A/F Six-Axis Robot

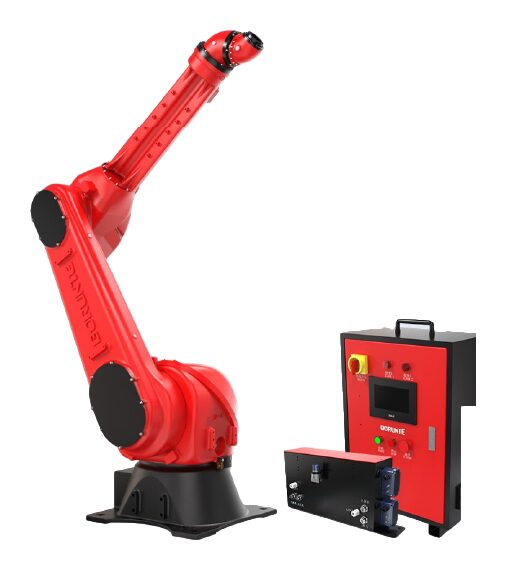

BRTIRSE2013A/F Six-Axis Robot
Industrial robot

BRTIRSE2013A/F Six-Axis Robot

by BORUNTE · China · SE series six-axis

Six-axis robot, 13 kg payload at 2.1 m reach. Listed in two versions, 2013A and 2013F, with the same printed specification.

Key specs
Payload
13 kg29 lb
Reach
2,134 mm84 in
Axes
6
Repeatability
±0.5 mm±0.0197 in
Weight
385 kg849 lb
2 models in this family
BRTIRSE2013ABRTIRSE2013F
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with BORUNTE, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Axes6
Arm length (reach)2134 mm
Max payload13 kg
Repeatability±0.5 mm
Power supply6.38 kVA
Weightapprox. 385 kg
J1 range±162.5°
J2 range±124°
J3 range-57°/+237°
J4 range±180°
J5 range±180°
J6 range±360°
J1 max speed101.4°/s
J2 max speed105.6°/s
J3 max speed130.49°/s
J4 max speed368.4°/s
J5 max speed415.38°/s
J6 max speed545.45°/s

As printed in the BORUNTE catalog, page 12. Confirm final specs in your quote.
