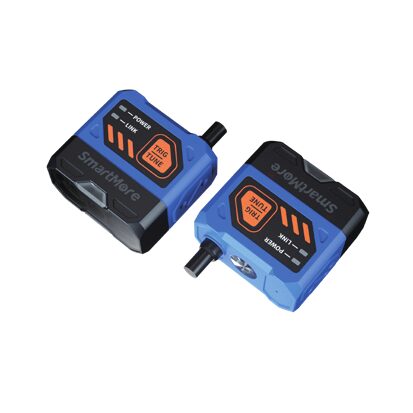

FST100 High-Speed AI Edge Vision Sensor

by SmartMore · Hong Kong · AI Edge Vision Sensor

The fastest edge-learning sensor in the range: detection under 10 ms, over 6,000 inspections per minute, with AI triggering that removes the need for a separate trigger sensor.

Key specs

Weight

0.1 kg0.2 lb

Protection

IP67

Power supply

24 VDC

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	640 x 480
Detection time	Under 10 ms
Image sensor	Black and white, global shutter
Focusing	Manual focus
Focal length	6 mm
Working distance	40-100 mm (integrated light); 40-300 mm (external light)
Trigger	I/O trigger, internal trigger, AI trigger
Light source	White
Inputs	2 opto-isolated, NPN and PNP
Outputs	3 opto-isolated, NPN and PNP
Configurable I/O	2 non-isolated channels
Interface	Ethernet
Connector	M12-17PIN
Power input	24 VDC
Power consumption	3.5 W
Dimensions	47 x 25 x 43 mm
Weight	Approximately 110 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
