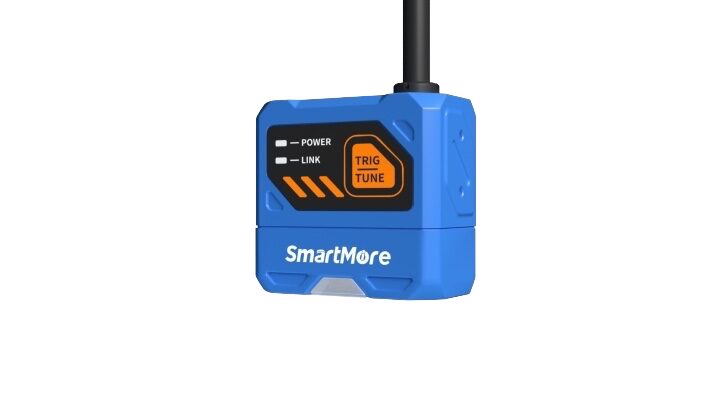

VA100E Compact Robot Vision Camera

by SmartMore · Hong Kong · Robot Smart Vision Camera (VA Lite)

The smallest robot guidance camera in the VA family, a 1 MP edge camera with hand-eye calibration for pick-and-place at 30 to 300 mm.

Key specs

Weight

0.1 kg0.2 lb

Protection

IP67

Power supply

24 VDC

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1280 x 800 (1 MP)
Image sensor	Black and white, global shutter
Exposure time	20 us to 1 s
Pixel size	3 um x 3 um
Focusing	Manual
Focal length	6 mm
Working distance	30-300 mm
Tools	Position correction; pattern presence; circle, line and corner finding; area detection; point-to-point, point-to-line, line-to-line and angle measurement; chessboard and hand-eye calibration
Light source	Red or white, non-polarized or fully polarized
Inputs	2 opto-isolated, NPN and PNP
Outputs	3 opto-isolated
Interfaces	RS232, Ethernet
Protocols	TCP Server, TCP Client, ModBus TCP, Profinet, Ethernet/IP, Serial
Power input	24 VDC
Dimensions	47 x 25 x 43 mm
Weight	Approximately 112 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
