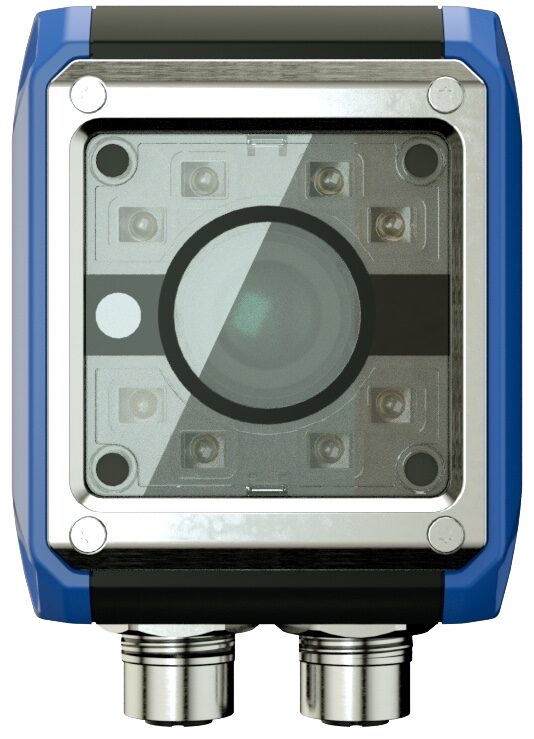

VA200 2.3 MP Robot Vision Camera

by SmartMore · Hong Kong · Robot Smart Vision Camera (VA Lite)

A 2.3 MP edge vision camera for robot guidance and hand-eye calibration, working from 100 to 1000 mm with three lens options.

Key specs

Weight

0.3 kg0.7 lb

Protection

IP67

Power supply

24 VDC

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1920 x 1200 (2.3 MP)
Image sensor	Black and white, global shutter
Exposure time	20 us to 1 s
Pixel size	3 um x 3 um
Sensor size	1/2.6 inch
Focusing	Mechanical
Focal length	8 mm, 12 mm or 16 mm
Working distance	100-1000 mm
Tools	Position correction; pattern presence; code reading and register classification; circle, line and corner finding; grey-area detection; point-to-point, point-to-line, line-to-line and angle measurement; chessboard and hand-eye calibration
Light source	Standard red or white; high-brightness white
Polarization	Non-, semi- or fully polarized
Inputs	2 opto-isolated, NPN and PNP
Outputs	3 opto-isolated
Interfaces	RS232, Ethernet
Protocols	TCP Server, TCP Client, ModBus TCP, Profinet, Ethernet/IP, Serial
Power input	24 VDC
Dimensions	58 x 53.5 x 69 mm
Weight	Approximately 295 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
